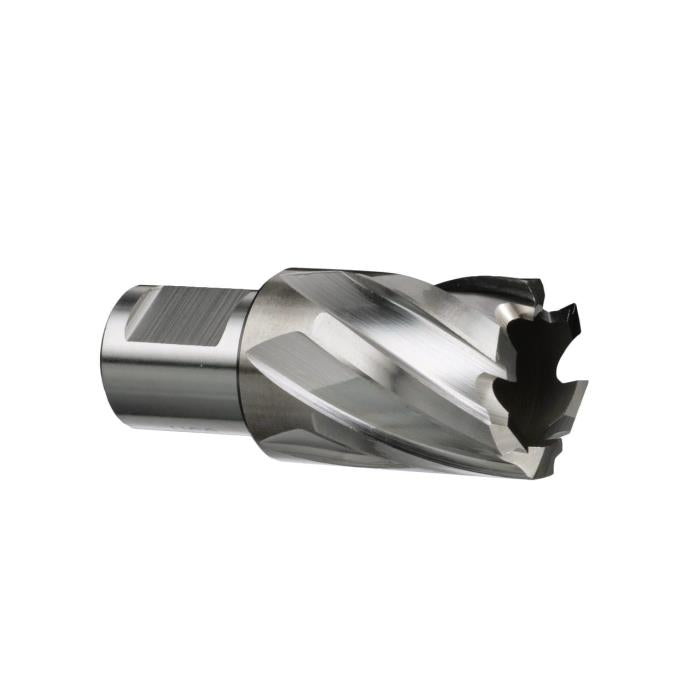

Drill America 3 inch depth HSS annular cutter with pilot pin drilling structural steel plate

Roll over image to zoom in Click on image to zoom

3" Depth HSS Annular Cutters
Diameter: 13/16"

Drill AmericaSKU: DRA-DWC5-530-324 UPC: 887861000772

Diameter: 13/16"

Variant

242 .35CAD$

Click here to request for bulk pricing

Available on order, Look below for lead time

Eastern CA QC · ON · ATL

Estimated2–3 days

Western CA BC · AB · SK

Estimated3–4 days

Northern Territories YT · NT · NU

Estimated5–7 days

United States may vary By state

Estimated 3–5 days

Transit times are estimates and may vary by carrier and destination.

Have any questions? Click here

Structural/mild steel, alloy steel, stainless, cast iron
Plate, beams, angle, pipe, tube, large sections
Magnetic drill press operations only (3/4″ Weldon)
Holemaking to 3″ depth; pilot-guided slug ejection
Fabrication shops, bridgework, plant maintenance, field installs
Use with cutting oil/coolant to extend tool life and improve finish

Drill America 3″ HSS Annular Cutters — 3/4″ Weldon Shank, Pilot Pin Included

Deep-cut high-speed steel annular cutters for magnetic drill presses. True 3″ depth of cut, faster feed vs twist drills, cleaner burr-free holes, and reliable pilot-guided slug ejection. Standard 3/4″ Weldon shank fits most mag-drill arbors.

Why it wins

True 3″ depth for structural steel, plate and heavy sections.
3/4″ Weldon shank + pilot pin for centering, coolant flow and slug ejection.
Broad size range up to 2-1/16″

Available sizes (3″ depth)

Diameter	Typical SKU
13/16″	DWC5-530-324
7/8″	DWC5-530-327
15/16″	DWC5-530-330
1″	DWC5-530-333
1-1/16″	DWC5-530-336
1-1/8″	DWC5-530-339
1-3/16″	DWC5-530-342
1-1/4″	DWC5-530-345
1-5/16″	DWC5-530-348
1-3/8″	DWC5-530-351
1-7/16″	DWC5-530-354
1-1/2″	DWC5-530-357
1-9/16″	DWC5-530-360
1-5/8″	DWC5-530-363
1-11/16″	DWC5-530-366
1-3/4″	DWC5-530-369
1-13/16″	DWC5-530-372
1-15/16″	DWC5-530-378
2″	DWC5-530-381
2-1/16″	DWC5-530-383

Technical notes

Magnetic drill press use only; not for hand drills.
Use cutting fluid to manage heat and extend tool life.
Ideal for fabrication, bridgework, plant maintenance and field installs.

Verify magnet adhesion and secure the workpiece before cutting. Follow the mag-drill manufacturer’s operating instructions.

Premium HSS Annular cutters | ** Pilot pin not included **

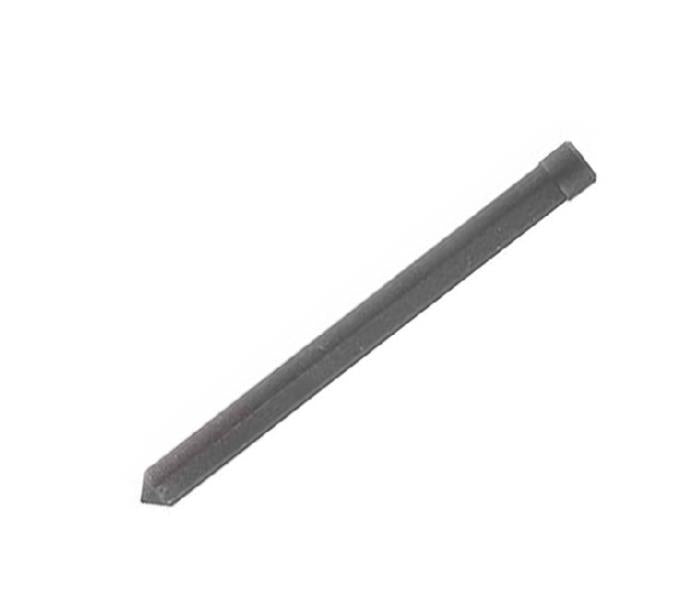

3" Depth HSS Annular Cutters | Pilot pin
