Materials & Applications
Recommended use cases for this product across common industrial materials and jobsite applications.
Structural steel, mild steel, stainless.
Steel plate, I-beams, H-beams, angle, pipe, tube.
Annular cutting up to 2″ depth of cut.
Use in magnetic drill systems with ¾″ Weldon shank arbors and pilot pin.
Fabrication shops, bridgework, construction installs, field maintenance.
Pair with cutting fluid/wax (e.g., BruteLube) to extend tool life and manage heat.
Product details
Technical Description
Essential product information, specifications, and recommended use before ordering.

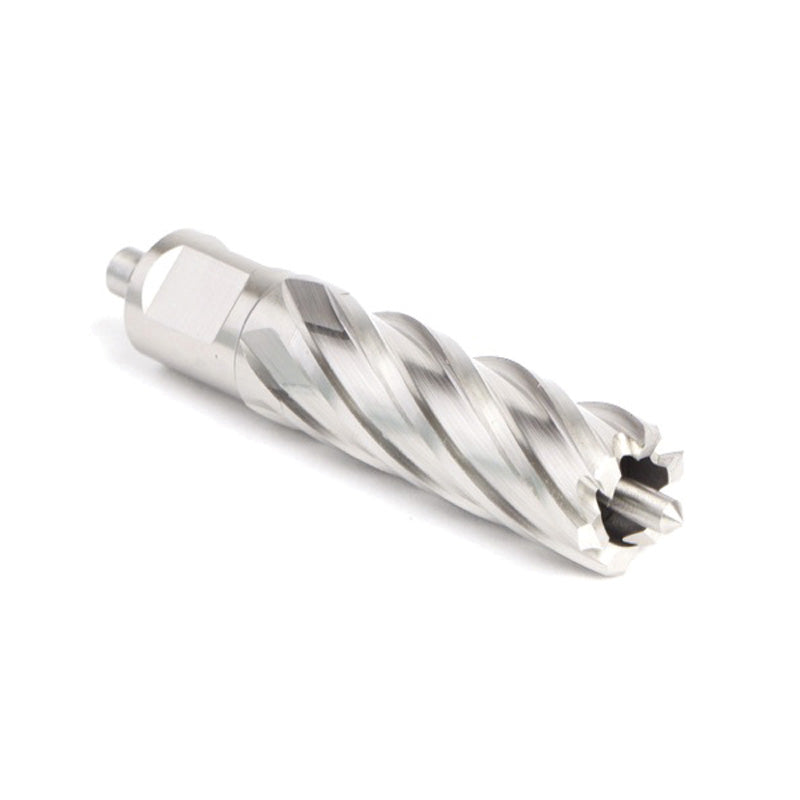

Champion CS200 HSS Annular Cutters with Pilot Pin - 2" Depth of Cut
The Champion CS200 HSS annular cutter series is built for drilling clean, large-diameter holes in steel plate, structural beams, pipe and tube using magnetic drill press systems. Each CS200 cutter is made from high speed steel and designed with a 2" depth of cut, making it a strong choice when you need deeper hole capacity than standard 1" depth annular cutters.

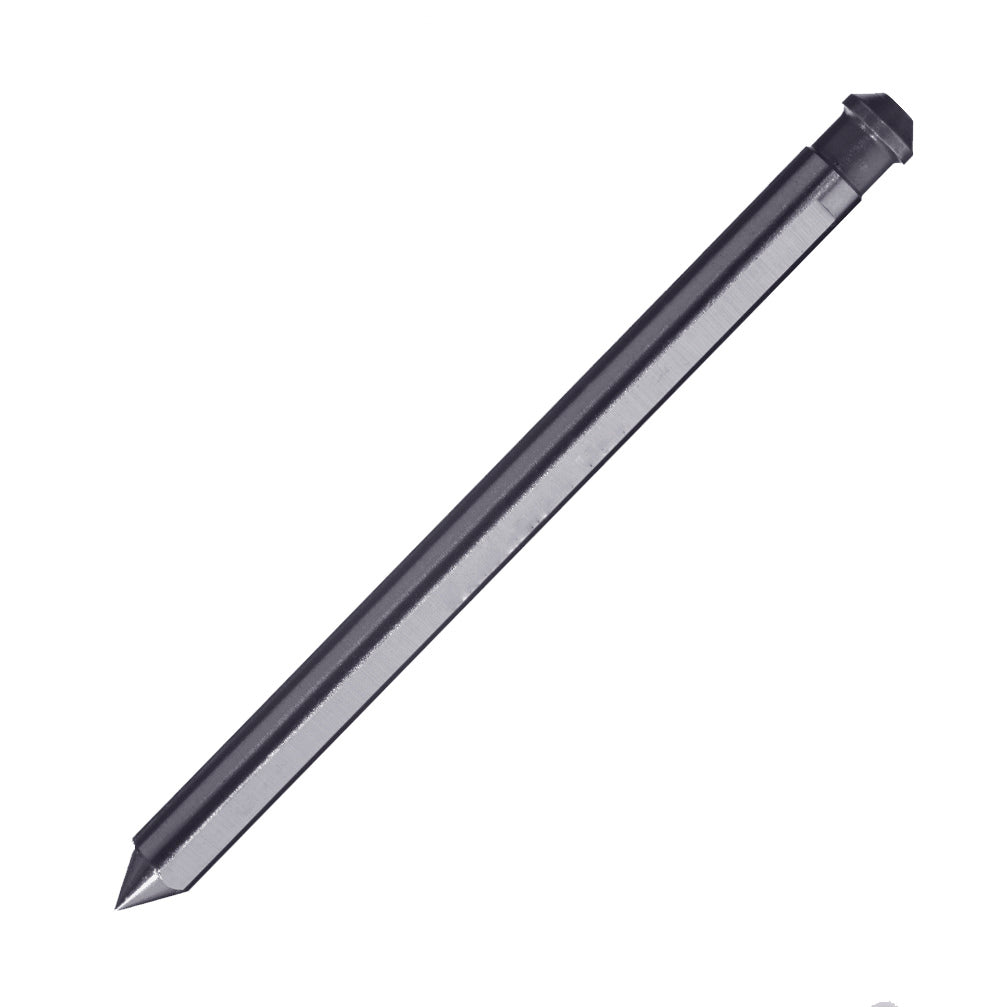

These cutters include the required pilot pin, which helps with accurate centering, coolant flow and automatic slug ejection. The 3/4" Weldon shank fits standard mag drill arbors and is compatible with RotoBrute magnetic drill press systems and many other magnetic drill setups.
Why Choose Champion CS200 Annular Cutters?
- 2" depth of cut for deeper drilling through steel plate, beams, pipe and tube.
- Pilot pin included for accurate hole starting, coolant delivery and fast slug ejection.
- 3/4" Weldon shank for compatibility with standard magnetic drill press arbors.
- High speed steel construction for productive drilling in common steel fabrication applications.
- Designed for use with RotoBrute magnetic drill press systems and most other mag drill systems.
- Recommended for use with cutting fluid or wax to reduce heat and extend cutter life.
Common Applications
- Structural steel fabrication
- Steel plate drilling
- Pipe and tube hole cutting
- Beam drilling
- Maintenance and repair work
- Magnetic drill press applications
Technical Specifications
| Series | Champion CS200 |
|---|---|
| Cutter Type | HSS Annular Cutter with Pilot Pin |
| Material | High Speed Steel (HSS) |
| Depth of Cut | 2" / 50.8 mm |
| Shank Size | 3/4" Weldon Shank, 2-flat |
| Pilot Pin | Included |
| Available Diameter Range | 7/16" to 2" |
| Recommended Machines | RotoBrute magnetic drill press systems and most standard mag drills |
| Recommended Lubrication | Cutting fluid or wax, such as BruteLube |

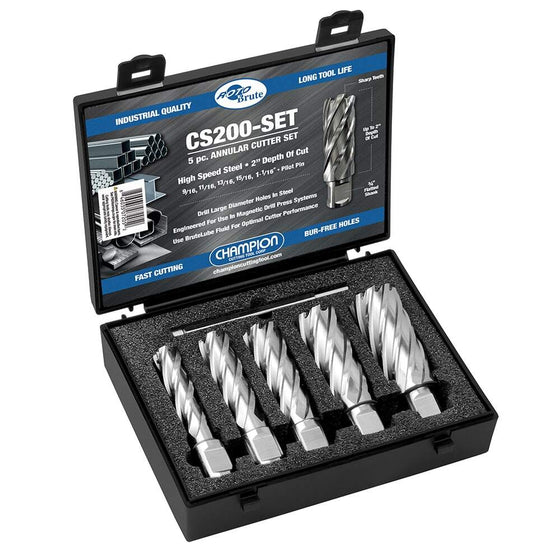

Champion CS200-SET Option
The Champion CS200-SET is also available for users who want the most common fabrication sizes in one kit. The set includes 9/16", 11/16", 13/16", 15/16" and 1-1/16" HSS annular cutters with pilot pin, all built with a 2" depth of cut and 3/4" Weldon shank compatibility.
Need Help Choosing the Right Size?
If you are matching a specific hole size, machine, arbor or application, contact us before ordering. We can help confirm the right Champion CS200 cutter size, pilot pin compatibility and recommended lubrication for your material.
Always wear appropriate PPE. Secure the magnetic drill base before use and follow all machine and cutter manufacturer instructions. Cutting tools may shatter if misused.
Champion CS200 Annular Cutter FAQ
What is the depth of cut for Champion CS200 annular cutters?
Champion CS200 HSS annular cutters have a 2" depth of cut, making them suitable for deeper drilling applications in steel plate, structural beams, pipe and tube.
Do Champion CS200 cutters include a pilot pin?
Yes. Champion CS200 annular cutters include a pilot pin. The pilot pin helps with centering, coolant delivery and automatic slug ejection.
What shank size do CS200 annular cutters use?
Champion CS200 cutters use a 3/4" Weldon shank with two flats, which fits standard magnetic drill press arbors.
Can CS200 annular cutters be used with most magnetic drills?
Yes. They are designed for RotoBrute magnetic drill press systems and are compatible with many other mag drill systems using a 3/4" Weldon arbor.
What materials are Champion CS200 cutters made for?
CS200 cutters are designed mainly for drilling large-diameter holes in steel plate, structural beams, pipe and tube.
Should I use cutting fluid with CS200 annular cutters?
Yes. Cutting fluid or wax is recommended to reduce heat, improve finish and extend cutter life.
Most Interesting Product Feature
Product highlight
Most Interesting Product Feature
- Pilot pin included - Premium HSS Annular cutter
Frequently bought together
Recommended Add-Ons
Quickly add the accessories most often purchased with this item so the job gets done right the first time.
Parts & Accessories
Parts Available for This Product
Add compatible parts and accessories directly to your cart before checkout.
Available sets
Sets Available for This Product
Save time on every order with complete compatible kits ready for the job.
Compatible kits
Simplified ordering
Jobsite ready
Set
5 Piece Bright Finish 2" Depth HSS Annular Cutter Set
Contains: CS200-9/16, 11/16, 13/16, 15/16 & 1-1/16 w/ pilot pin
CHA-CS200-SET
