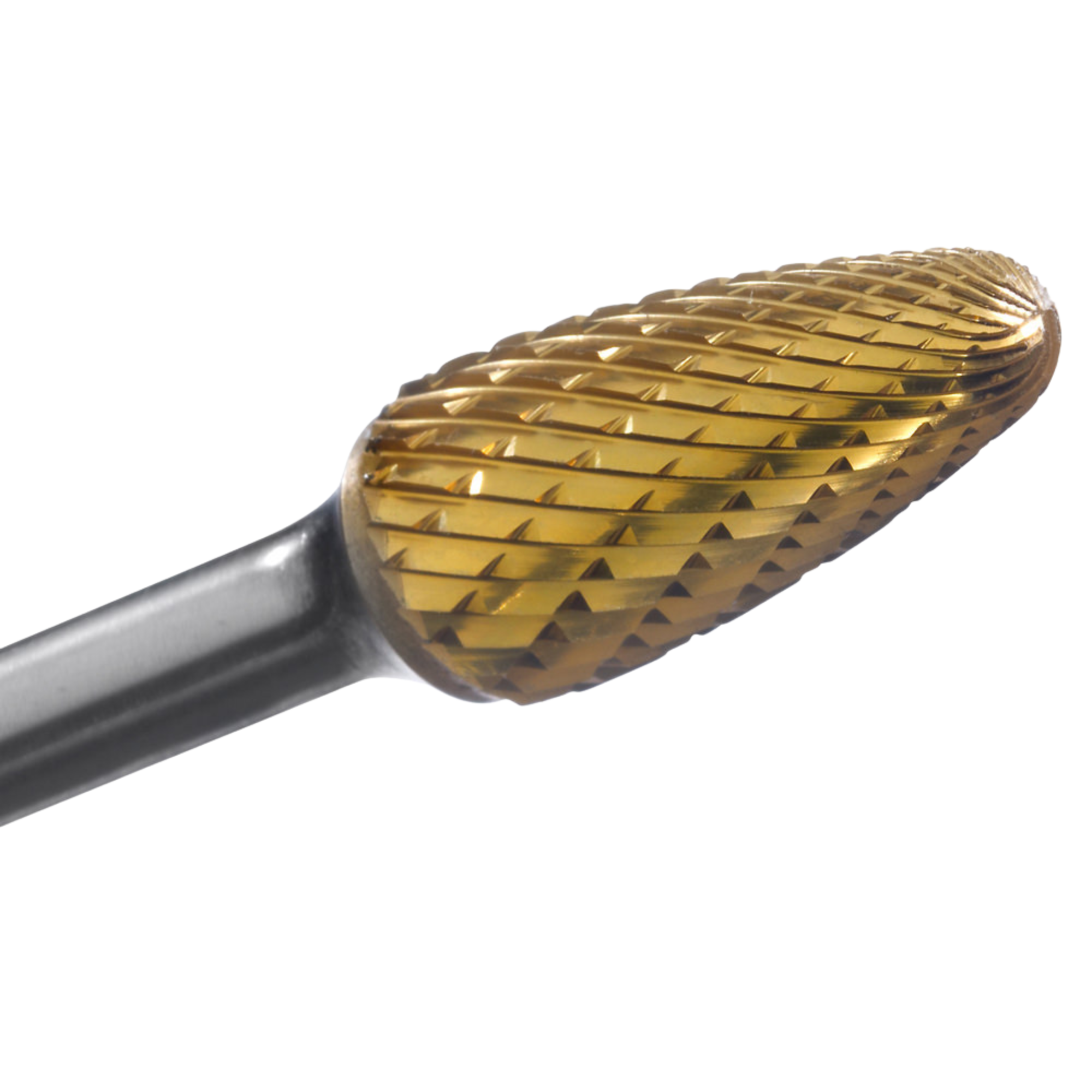

Champion SF series tree radius end carbide burs for weld cleanup

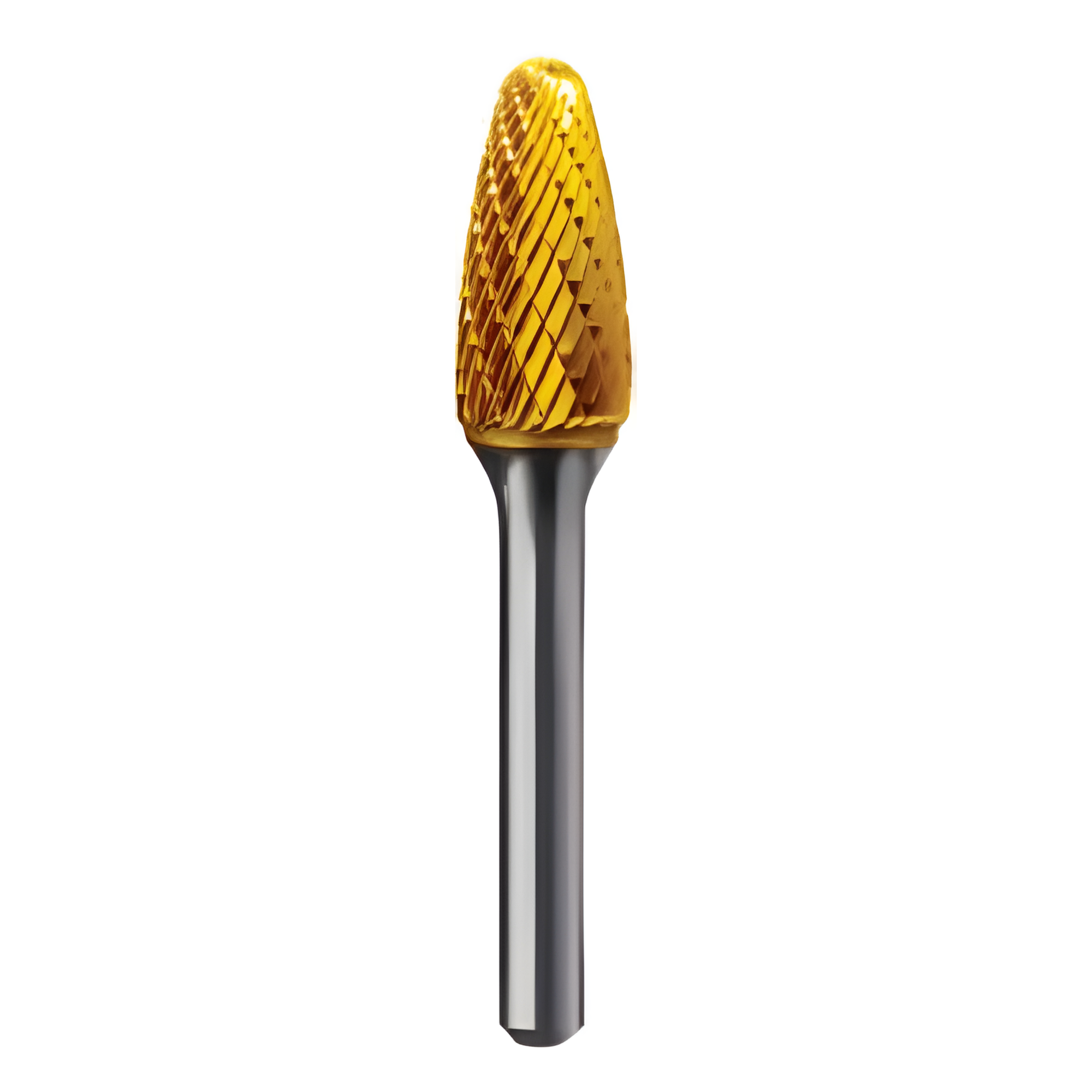

Tree shape carbide bur with radius end profiling steel

Solid carbide tree burr for die grinder applications

Roll over image to zoom in Click on image to zoom

Tree Shape Radius End TiN Coated Double Cut Carbide Burs
Diameter X Length of Cut: 1/8" x 1/2"

Mostly used for Work on Narrow Contours

Champion Cutting ToolSKU: CHA-SF11 UPC: 846035006286

Diameter X Length of Cut: 1/8" x 1/2"

Variant

25 .78CAD$

Click here to request for bulk pricing

Available on order, Look below for lead time

Eastern CA QC · ON · ATL

Estimated2–3 days

Western CA BC · AB · SK

Estimated3–4 days

Northern Territories YT · NT · NU

Estimated5–7 days

United States may vary By state

Estimated 3–5 days

Transit times are estimates and may vary by carrier and destination.

Have any questions? Click here

Steel, Stainless steel, Cast iron, Aluminum, Non-ferrous metals
Weld cleanup and blending
Groove and fillet shaping
Profiling and contour finishing
Deburring edges
Fabrication and industrial maintenance

Champion SF Series Tree Radius End Carbide Burs (SF1–SF16) — Controlled Reach for Profiling & Weld Cleanup

The Champion SF Series Tree Radius End Carbide Burs are precision rotary cutting tools designed for controlled material removal, deep profiling, and weld cleanup in metalworking applications. Available in sizes SF1 through SF16, this series features a tapered tree shape with a rounded end for smooth cutting without sharp corner gouging.

Manufactured from premium solid carbide, SF series burs provide excellent rigidity, edge retention, and durability at high operating speeds. The tree radius end geometry allows operators to access tight areas, grooves, and fillets while maintaining smooth transitions and controlled cutting action.

SF series carbide burs are ideal for use with die grinders and high-speed rotary tools in fabrication shops, welding operations, and industrial maintenance environments where reach and precision are required.

Key Features

Tree shape with radius end for controlled cutting and smooth finishes.
Solid carbide construction for long tool life and high RPM stability.
Excellent reach into grooves, fillets, and confined areas.
Wide size range (SF1–SF16) for versatility and precision work.
Designed for die grinders and rotary tools.

Materials & Applications

Tool Material	Solid Carbide
Materials	Steel, stainless steel, cast iron, aluminum, non-ferrous metals
Applications	Weld cleanup, profiling, groove shaping, deburring, contour finishing

Operate within recommended RPM limits. Maintain steady pressure and wear appropriate PPE when using rotary tools.

Tree Radius End Geometry for Reach Without Gouging
The rounded tip allows deep access into grooves and tight areas while preventing sharp corner damage, making it ideal for weld cleanup and profiling work.
