01 — Essential Specifications
Choose with confidence
Essential specifications
The facts that matter most when choosing the right product in this family.
02 -- Materials, Applications & Machines
Working compatibility
Materials, applications & machines
Quickly confirm what the tool can cut, the work it is designed to perform, and the equipment it is intended to run on.
Compatible materials
Recommended workpiece materials
- Stainless steel
- Aluminum
- Steel
Recommended applications
Typical jobs and operations
- Steel, Stainless steel, Aluminum, Sheet metal Structural and general fastening Metal fabrication Machinery installation Maintenance and repair (MRO) Jobsite drilling and tapping
- Threading
- Holemaking
Compatible machines
Equipment and operating methods
- Manual
- Tapping machine
03 -- Complete Technical Specifications
Technical data
Complete technical specifications
Open only the groups you need to confirm construction, dimensions, and operating requirements.
Construction & identification
Tool typeTap & Drill Sets
Tool subtypeTap & Drill Sets
Detailed styleStandard Set Configuration
Manufacturer seriesDT22HEX-SET-NC5
Series familyDT22HEX
Manufacturer part numberDT22HEX-SET-NC5
Dimensions & fit
Size5-Piece Set UNC
Drill / wire / letter designationE
Pack quantity1
Set piece count5
Threading
Thread standard / formUNC
04 -- Why Choose this series
Series advantage
Why choose the DT22HEX-SET-NC5 series
DT22HEX-SET-NC5
Full-Size UNC Threads Created in One Pass. The DT22HEX-SET-NC5 allows users to drill and tap common National Coarse structural thread sizes in a single operation using standard hex-drive tools.
Features supporting this advantage
- Full-Size UNC Threads Created in One Pass. The DT22HEX-SET-NC5 allows users to drill and tap common National Coarse structural thread sizes in a single operation using standard hex-drive tools.
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
What’s included
Components supplied with this product
- Contains: 1/4-20, 5/16-18, 3/8-16, 7/16-14, 1/2-13
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
View the complete technical description

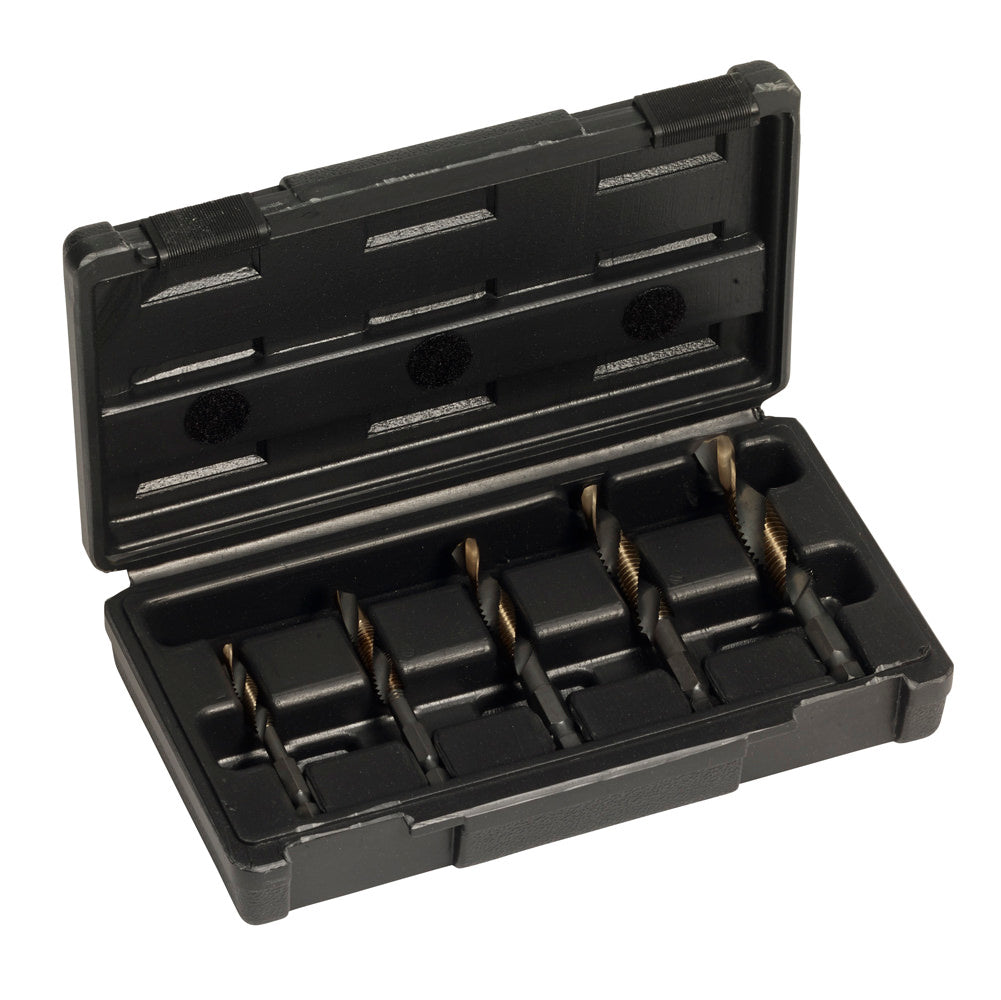

Champion DT22HEX-SET-NC5 5-Piece UNC Drill-Tap Set
The Champion DT22HEX-SET-NC5 is a 5-piece National Coarse (UNC) drill-tap set for drilling and threading in one operation. Its 1/4" hex shanks are suited to impact drivers, cordless drills and portable metalworking applications.
Each drill-tap is manufactured from high-speed steel (HSS) and features a 135° split point for fast starts and reduced walking. The integrated tap section produces clean, accurate threads while maintaining proper alignment between the drilled hole and the finished thread.
The 1/4″ hex shank allows quick-change use in impact drivers and cordless drills, making this set ideal for fabrication, maintenance, and field installation work where speed and efficiency matter.
Key Features
- 5 DT22HEX drill-tap combination tools
- National Coarse (UNC) sizes: 1/4-20, 5/16-18, 3/8-16, 7/16-14, 1/2-13
- 1/4″ hex shank for impact drivers and quick-change chucks
- Durable storage case for organization and transport
- Drill and tap in one operation to save time.
- UNC coarse thread coverage for structural and general fastening.
- 135° split point for fast, accurate hole starts.
- Hex shank design for secure drive engagement.
- Ideal for fabrication, installation, and maintenance work .
Technical Specifications
| Manufacturer part number | DT22HEX-SET-NC5 |
|---|---|
| Product type | Drill & Tap Combo |
| Tool Material | High Speed Steel (HSS) |
| Materials | Steel, stainless steel, aluminum, sheet metal |
| Applications | Structural fastening, metal fabrication, machinery installation, maintenance and repair |
Applications
Electrical panels, machine assembly, fabrication, field repair and maintenance drilling and threading.
Use the product according to Champion Cutting Tool instructions. Wear appropriate eye and face protection, secure the workpiece, and disconnect power before changing tools or accessories.
