Construction & identification
Tool typeMag Drill Parts & Accessories
Tool subtypeAC50 Replacement Parts
Detailed styleElectrical & Motor Components
Manufacturer seriesAC50-PARTS
Series familyAC50-PARTS
Part categoryAC50 Replacement Parts
Manufacturer part numberAC50-PARTS
Dimensions & fit
SizeNot Size-Specific
Drill / wire / letter designationT
Pack quantity1
04 -- Why Choose this series
Series advantage
Why choose the AC50-PARTS series
AC50-PARTS
Complete Machine Service Coverage in One Location. Provides centralized access to all AC50 service components, reducing downtime and eliminating cross-model ordering errors.
Features supporting this advantage
- Complete Machine Service Coverage in One Location. Provides centralized access to all AC50 service components, reducing downtime and eliminating cross-model ordering errors.
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
Compatible models
Machines or replacement series
- AC50
What’s included
Components supplied with this product
- ** Exploded Diagram & Parts List in images
Fit details
Part typeAC50 Replacement Parts
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
View the complete technical description
Champion AC50 MightiBrute Replacement Parts

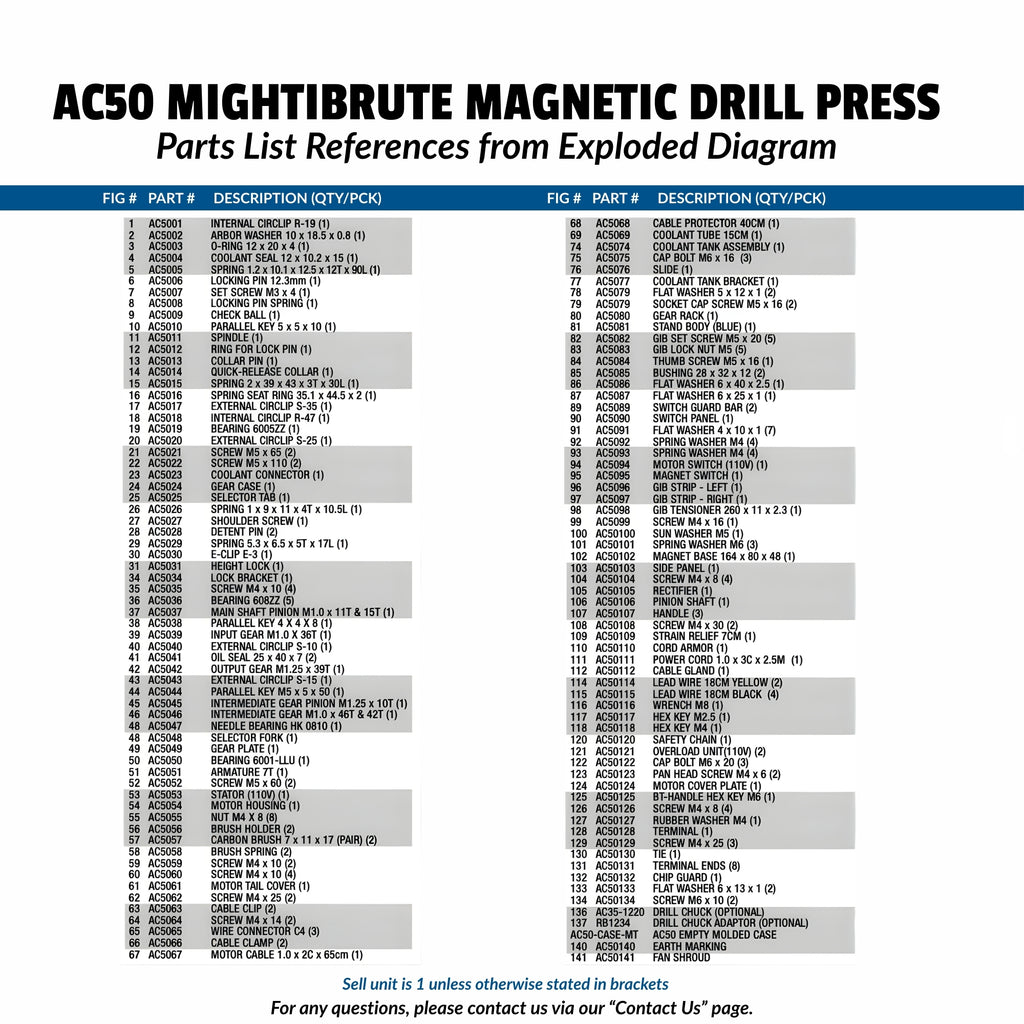

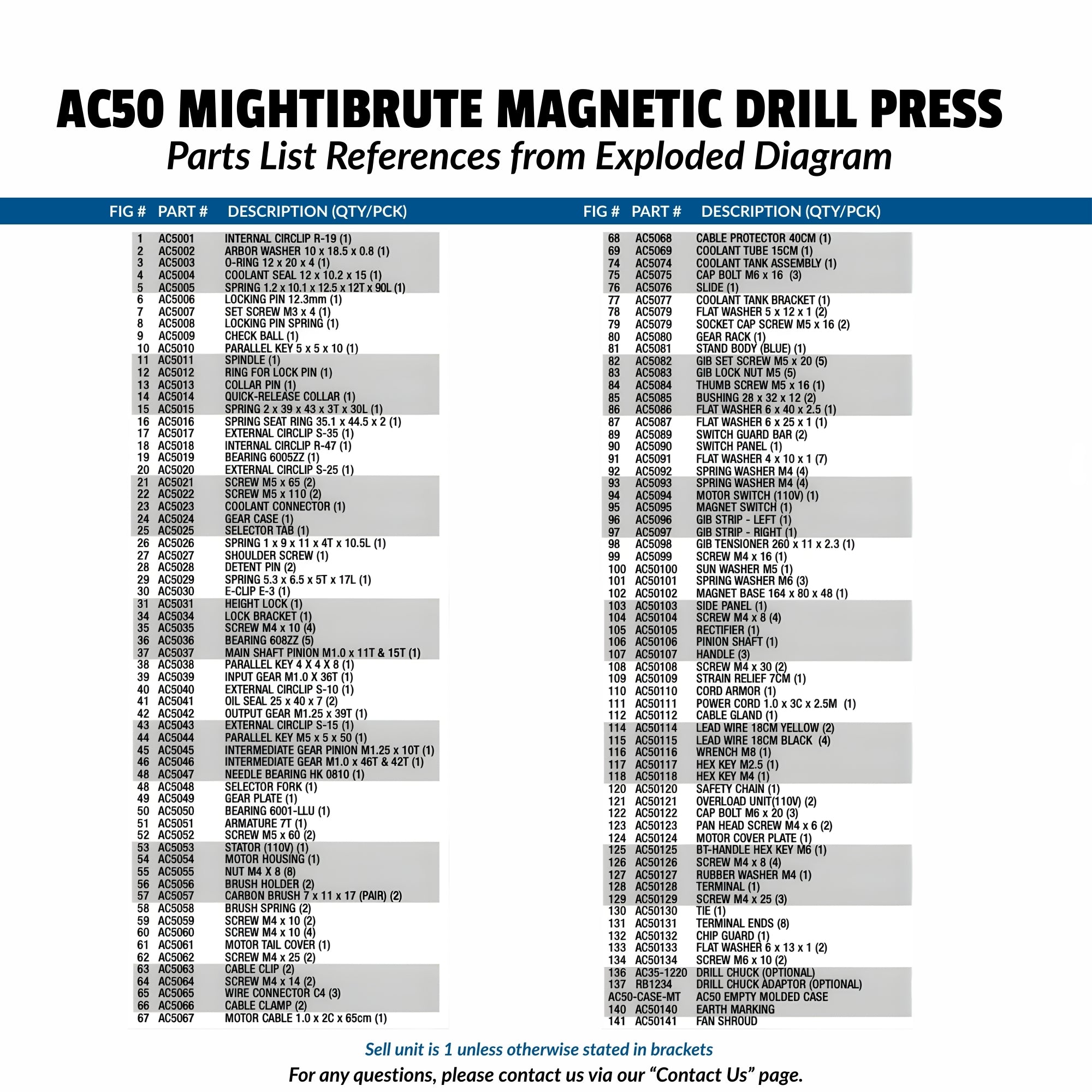

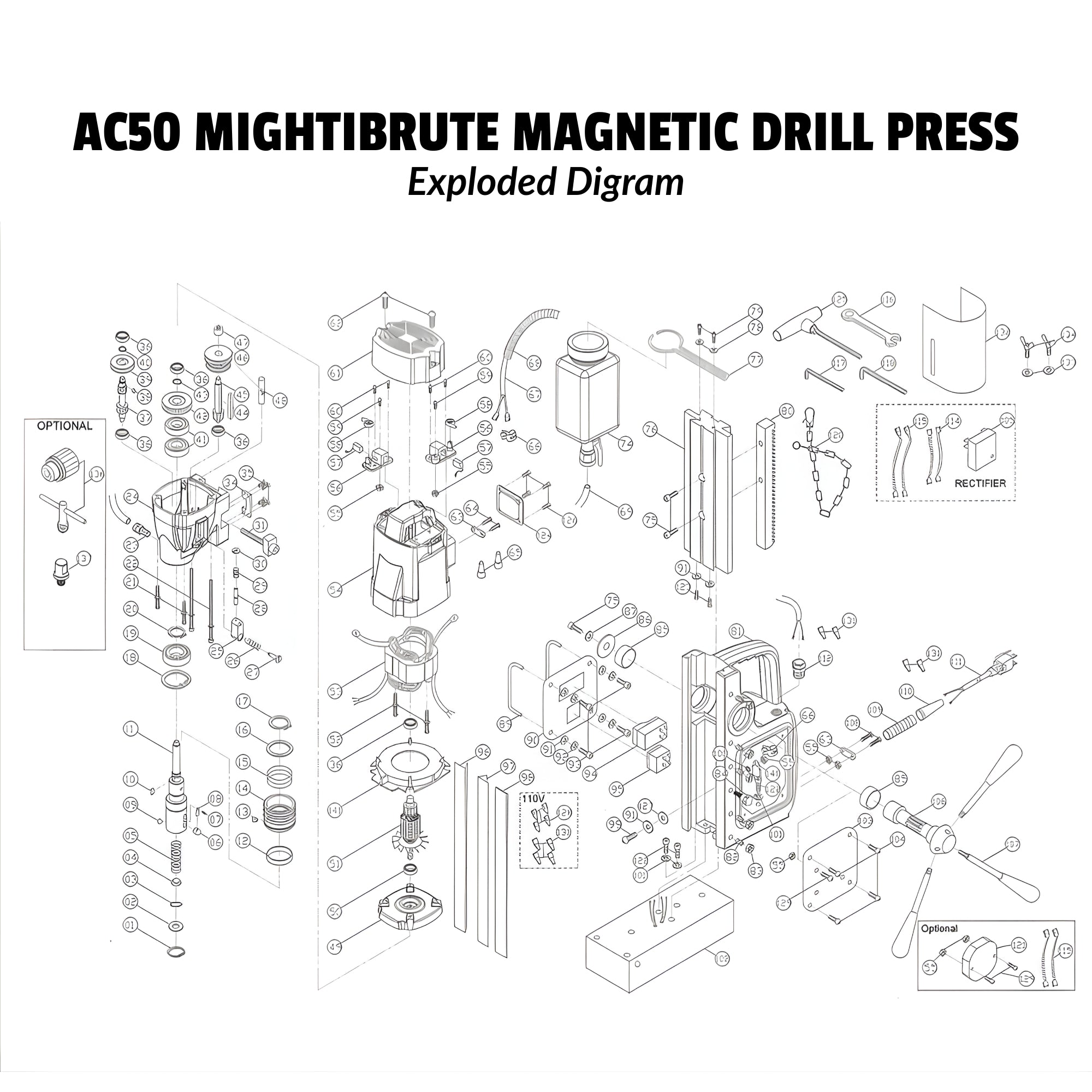

Identify Champion AC50 MightiBrute replacement parts by manufacturer part number and the AC50 exploded diagram. This listing groups electrical, motor, spindle, gear, bearing, arbor, magnet and coolant-system references under the AC50 model family.
Electrical and motor parts
Match switches, wiring and motor references to the exact MPN shown in the AC50 parts list.
Mechanical and spindle parts
Use the diagram reference for gears, bearings, spindle, feed and magnet components.
Arbors and service components
Confirm the selected arbor or accessory against the AC50 diagram. A model-family listing does not replace MPN verification.
Browse the Champion Mag Drill Parts hub, Mag Drill Maintenance or the AC50 MightiBrute drill page.
