Set
Materials & Applications
Compatibility
Materials & Applications
Recommended use cases for this product across common industrial materials and jobsite applications.
Steel and industrial-grade components, Electrical-grade materials (for switches, wiring, motor elements), Wear-resistant mechanical parts
Maintenance and repair of Champion AC35 magnetic drill press
Replacement of worn electrical or mechanical components
Preventive maintenance programs
Industrial drilling environments
Structural steel fabrication and field drilling
Product details
Technical Description
Essential product information, specifications, and recommended use before ordering.

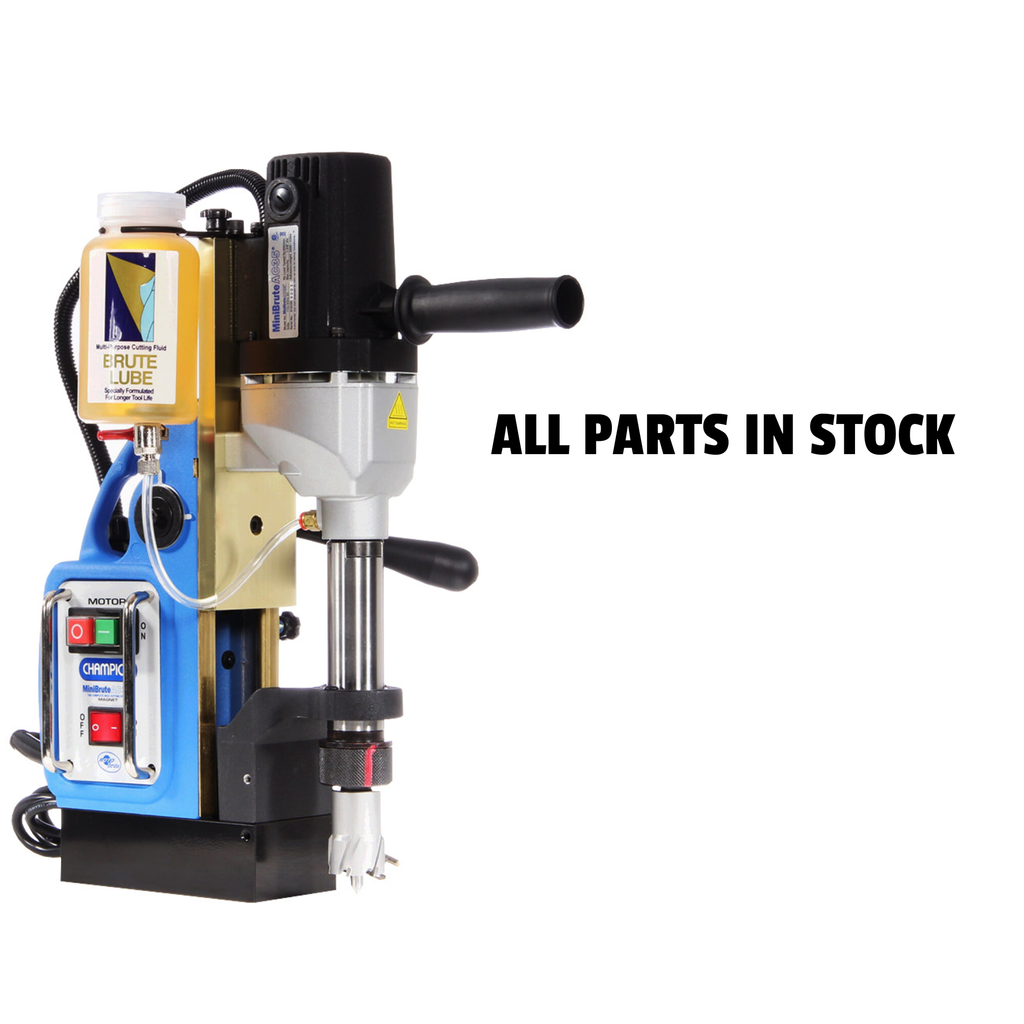

AC35 Replacement Parts — Service & Wear Components for Champion AC35 Magnetic Drill Press
The AC35 Replacement Parts product covers essential service and wear components designed for the Champion AC35 Magnetic Drill Press. These replacement parts allow operators to restore performance, extend machine life, and minimize downtime in industrial drilling applications.
Built to match the original AC35 specifications, these components are intended for maintenance, repair, and servicing of the AC35 mag drill used with annular cutters, twist drills, and tapping accessories. Ideal for shops, field crews, and maintenance departments that rely on the AC35 for structural steel drilling.
Common replacement items include electrical components, mechanical wear parts, and consumable accessories that experience fatigue over time due to heavy-duty drilling operations.
Common AC35 Replacement Components
- Carbon brushes
- Motor components
- Power switch and electrical parts
- Magnet base components
- Cooling and lubrication system parts
- Feed handles and mechanical controls
- Fasteners, springs, and wear hardware
All replacement parts are intended to maintain original machine performance, safety, and reliability when servicing the Champion AC35 magnetic drill.
⚠ Always disconnect power before servicing equipment. Use only compatible parts and follow Champion Cutting Tool service guidelines.
Most Interesting Product Feature
Product highlight
Most Interesting Product Feature
- Keeps the AC35 in Service Without Replacing the Machine. Instead of retiring a reliable magnetic drill, AC35 replacement parts allow operators to restore full functionality and extend equipment lifespan.
Available sets
Sets Available for This Product
Save time on every order with complete compatible kits ready for the job.
Compatible kits
Simplified ordering
Jobsite ready
Set
Set
Champion AC35 AC35102LQ Replacement Part – Set screw M4X4

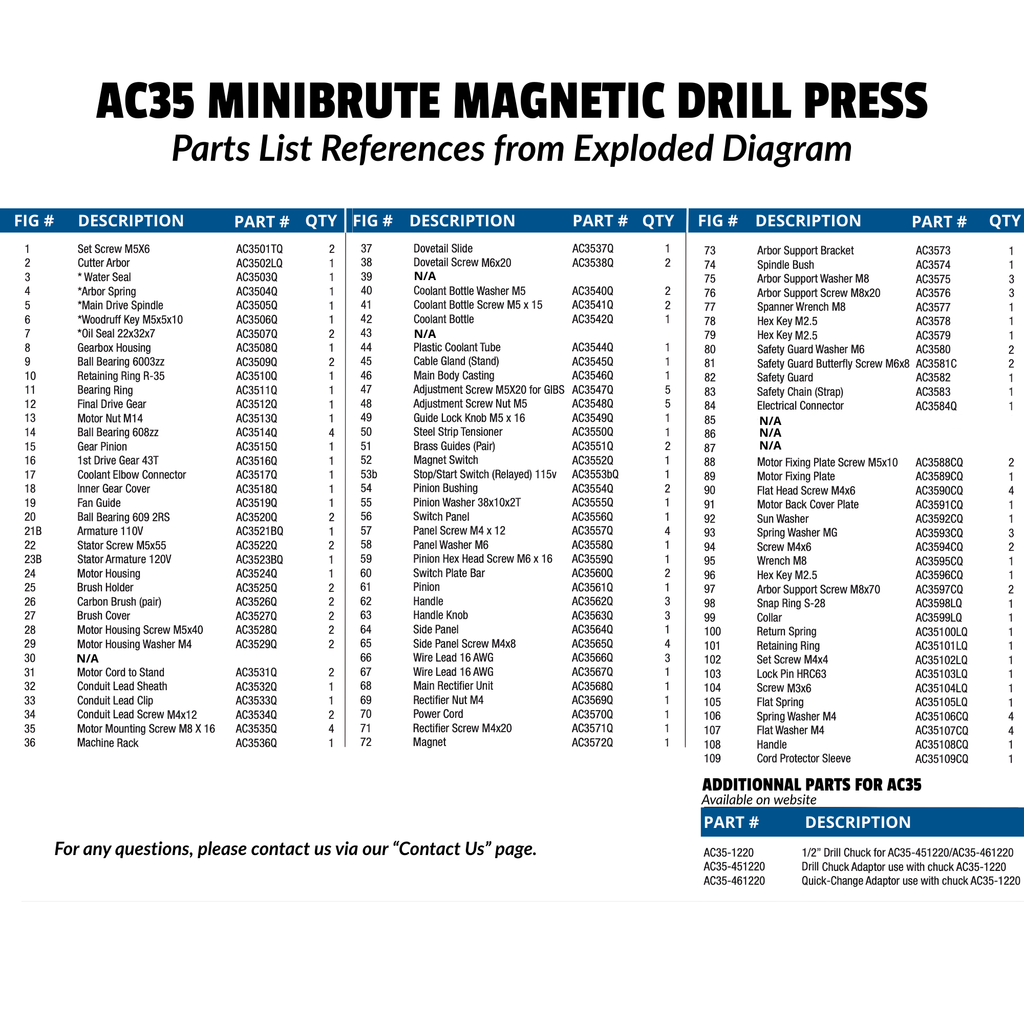

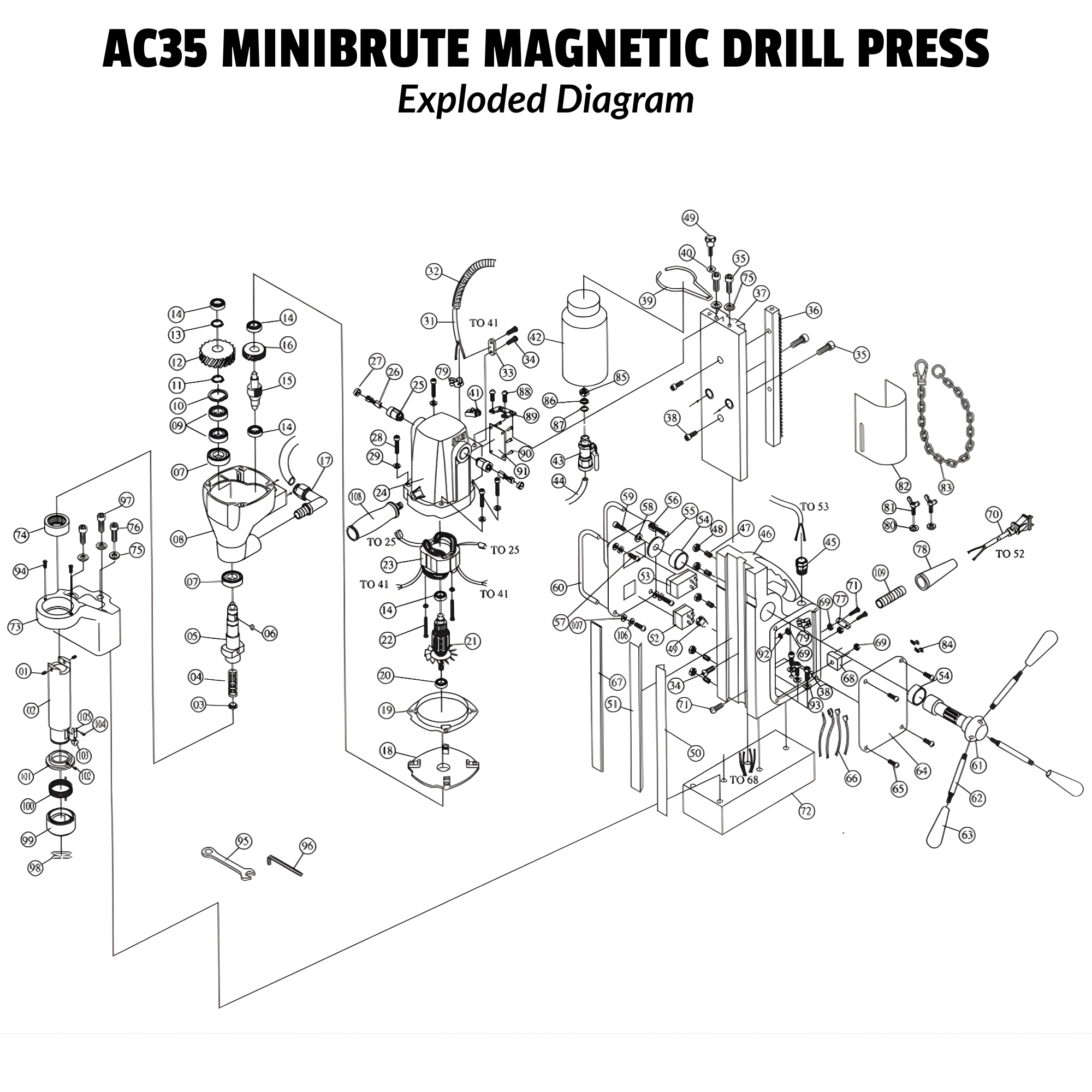

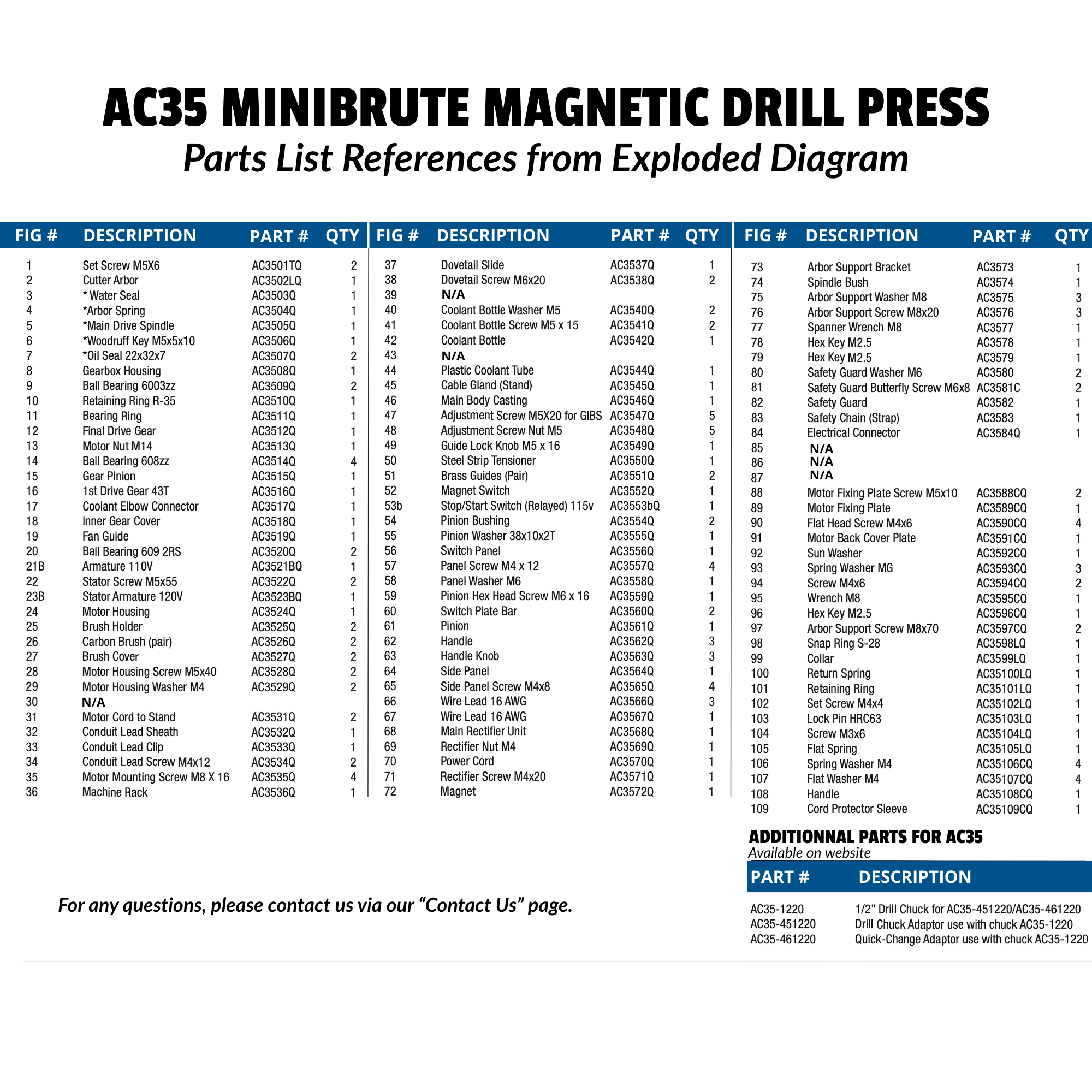

** Exploded Diagram & Parts List in images
CHA-AC35102LQ
Set

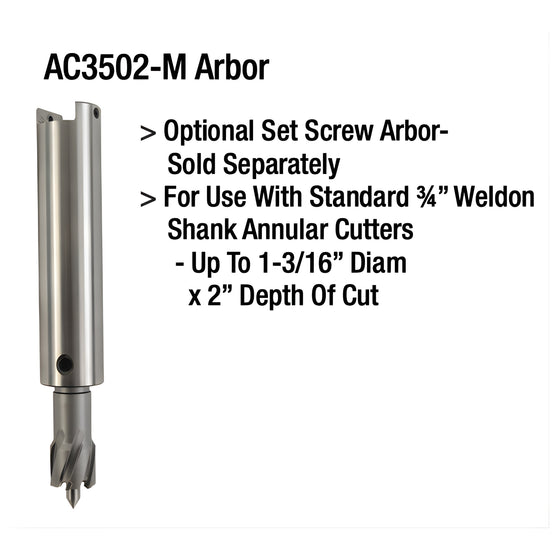

Champion AC35 AC3502-M Replacement Part – Optional set screw arbor
** Exploded Diagram & Parts List in images
CHA-AC3502-M
Set
Champion AC35 AC3501TQ Replacement Part – Arbor set screw M5X6
** Exploded Diagram & Parts List in images
CHA-AC3501TQ
Set
