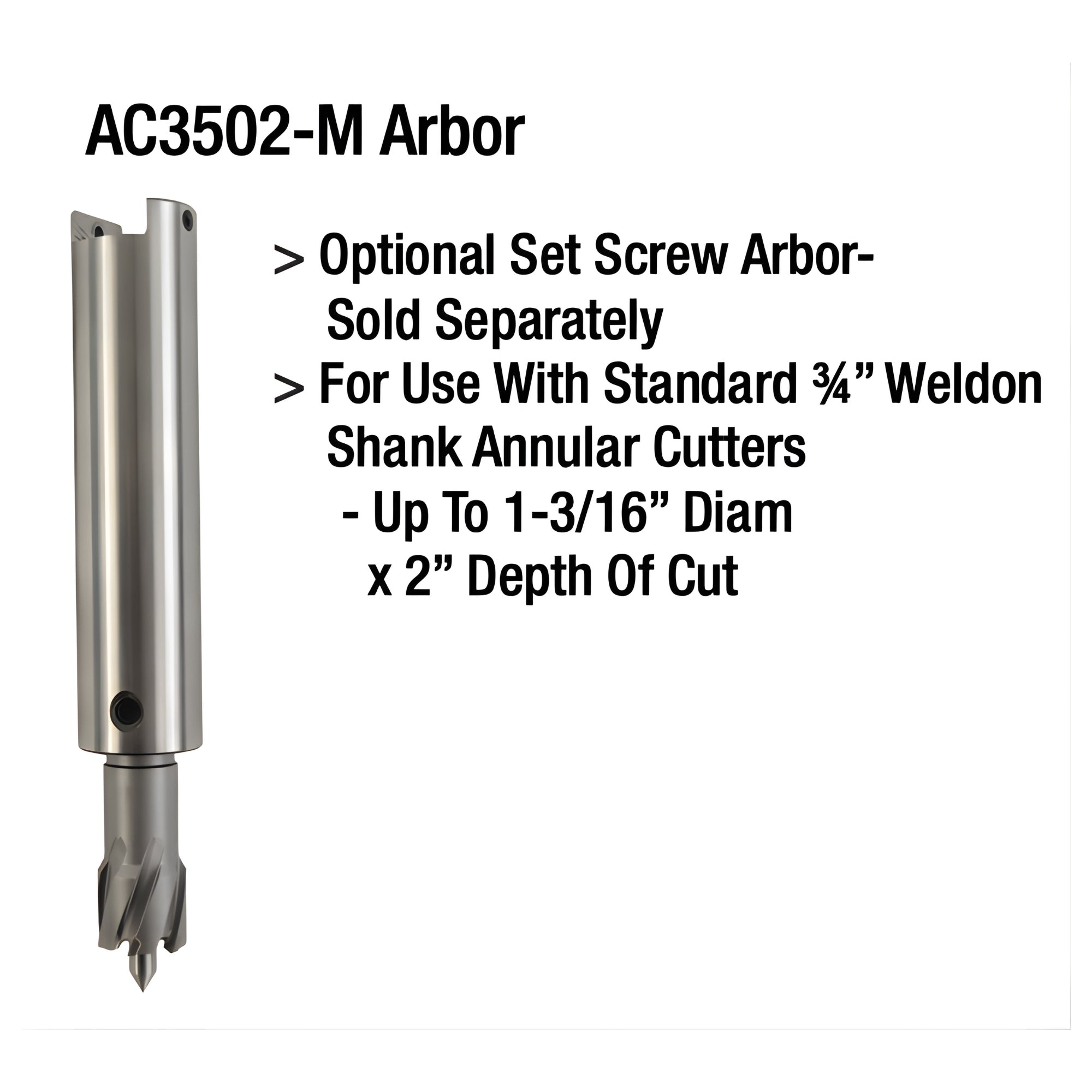

Champion AC3502-M Set Screw Arbor for AC35 Magnetic Drill Presses
The Champion AC3502-M set screw arbor is an optional arbor designed for use with the Champion AC35 magnetic drill press. Built for standard 3/4" Weldon shank annular cutters, this arbor provides a traditional set screw locking system for users who prefer a fixed, tool-tightened cutter setup instead of a quick-change arbor.
The AC3502-M is made for annular cutters up to 1-3/16" diameter with a maximum 2" depth of cut. It is a practical replacement or alternate arbor for AC35 mag drill users working in structural steel drilling, fabrication, maintenance and industrial holemaking applications.
Unlike quick-change arbors, the set screw design secures the cutter by tightening the screws directly against the Weldon flats. This gives the operator a simple, rigid and dependable connection when using compatible annular cutters.
Key Features
- Optional set screw arbor for Champion AC35 magnetic drill presses.
- Designed for standard 3/4" Weldon shank annular cutters.
- Supports cutters up to 1-3/16" diameter.
- Supports annular cutters up to 2" depth of cut.
- Traditional set screw locking system for secure cutter retention.
- Sold separately as an alternate or replacement arbor for AC35 mag drills.
Materials & Applications
- Structural steel drilling
- Fabrication shop work
- Maintenance and repair drilling
- Magnetic drill press applications
- Use with compatible 3/4" Weldon annular cutters
- Replacement arbor setup for Champion AC35 mag drills
Technical Specifications
| Part Number | AC3502-M |
|---|---|
| Product Type | Set Screw Annular Cutter Arbor |
| Compatible Machine | Champion AC35 Magnetic Drill Press |
| Cutter Shank Compatibility | Standard 3/4" Weldon Shank |
| Max Cutter Diameter | 1-3/16" |
| Max Depth of Cut | 2" |
| Locking Style | Set Screw |
| Status | Optional arbor, sold separately |
Compatibility Note
The AC3502-M is intended for use with standard 3/4" Weldon shank annular cutters within the AC35 cutter capacity. Always confirm cutter diameter, cutting depth and arbor compatibility before operation.
Always disconnect power before installing or removing tooling. Make sure all set screws are properly tightened against the cutter flats before drilling. Use proper PPE and follow Champion magnetic drill safety instructions.
Champion AC3502-M Arbor FAQ
What is the Champion AC3502-M arbor used for?
The Champion AC3502-M is a set screw arbor used with the Champion AC35 magnetic drill press for holding compatible 3/4" Weldon shank annular cutters.
Is the AC3502-M arbor compatible with the Champion AC35 mag drill?
Yes. The AC3502-M is an optional set screw arbor for the Champion AC35 magnetic drill press.
What cutter shank does the AC3502-M accept?
The AC3502-M accepts standard 3/4" Weldon shank annular cutters.
What is the maximum cutter capacity for the AC3502-M?
The AC3502-M supports annular cutters up to 1-3/16" diameter with a maximum 2" depth of cut.
Is the AC3502-M a quick-change arbor?
No. The AC3502-M is a traditional set screw arbor. For a quick-change arbor, the related Champion AC3502LQ is the standard quick-change arbor for the AC35.
Is the AC3502-M sold separately?
Yes. The AC3502-M is an optional arbor and is sold separately.
