01 — Essential Specifications
Choose with confidence
Essential specifications
The facts that matter most when choosing the right product in this family.
02 -- Materials, Applications & Machines
Working compatibility
Materials, applications & machines
Quickly confirm what the tool can cut, the work it is designed to perform, and the equipment it is intended to run on.
Compatible materials
Recommended workpiece materials
- Cast iron
- Aluminum
- Non-ferrous metals
- Steel
Recommended applications
Typical jobs and operations
- Cast Iron Cast Steel Bronze Hard Copper Aluminum
- Holemaking
Compatible machines
Equipment and operating methods
- Portable drill
- Drill press
03 -- Complete Technical Specifications
Technical data
Complete technical specifications
Open only the groups you need to confirm construction, dimensions, and operating requirements.
Construction & identification
Tool typeDrill Bits
Tool subtypeCarbide-Tipped Drill Bits
Detailed styleCarbide-Tipped
Manufacturer series705CT
Series family705CT
Measurement systemImperial
Tool materialCarbide-tipped
Manufacturer part number705CT-19/64
Dimensions & fit
Size19/64"
Cutting diameter19/64
Flute / cutting length3-1/16
Overall length4-3/8
Pack quantity1
Cutting geometry
Point geometry118 Degree Point
Point angle118.0°
04 -- Why Choose this series
Series advantage
Why choose the 705CT series
705CT
Carbide-tipped cutting edge for hard and abrasive non-ferrous materials; not recommended for drilling steel
Features supporting this advantage
- Carbide-tipped cutting edge for hard and abrasive non-ferrous materials; not recommended for drilling steel
- Carbide-tipped
- 118 Degree Point
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
What’s included
Components supplied with this product
- Single 19/64" carbide-tipped jobber drill
- 118° point
- straight shank
- Made in USA
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
View the complete technical description

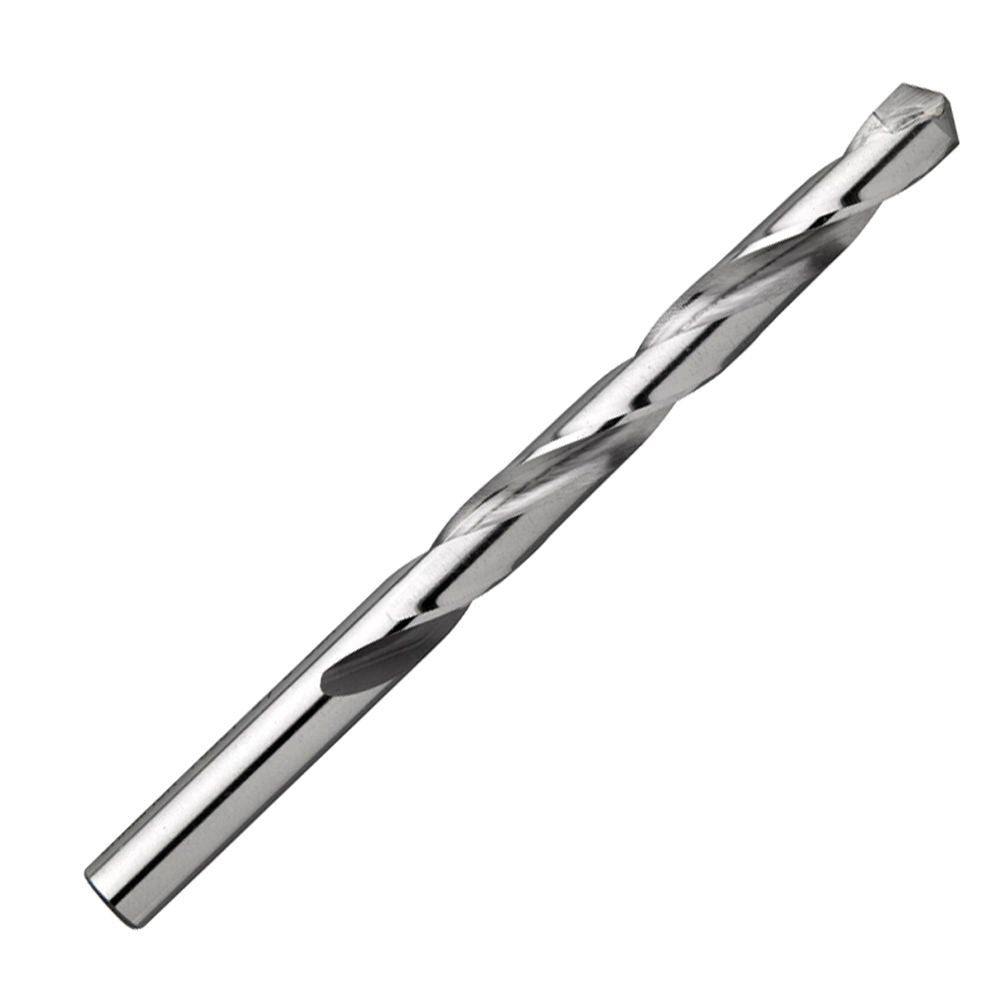

Champion 705CT-19/64 19/64" Carbide Tipped Jobber Drill – 118° Point
705CT-19/64 is a Champion 705CT medium-duty carbide-tipped jobber drill in 19/64" (0.2969 inch decimal equivalent). It is designed for drilling hard and abrasive non-ferrous materials, including cast iron, cast steel, bronze, hard copper and aluminum.
Key Benefits
- Carbide-tipped cutting edge supports drilling in hard and abrasive non-ferrous materials.
- 118° point provides a standard geometry for controlled starts in the intended materials.
- Straight shank fits compatible power drills and drill presses.
- Jobber-length design provides the reach needed for general holemaking applications.
- Made in USA by Champion Cutting Tool.
Applications
- Cast iron and cast steel
- Bronze, hard copper and aluminum
- Hard and abrasive non-ferrous materials
- Power drills and drill presses with a rigid setup
Important: This carbide-tipped 705CT drill is not recommended for drilling steel. Use the correct speed, feed, workholding and coolant for the material.
Technical Specifications
| Manufacturer part number | 705CT-19/64 |
|---|---|
| Series | Champion 705CT Carbide-Tipped Jobber Drills |
| Drill type | Carbide-tipped jobber drill bit |
| Diameter | 19/64" |
| Decimal equivalent | 0.2969 in |
| Cutting material | Carbide-tipped |
| Point style | 118° point |
| Shank | Straight shank |
| Flute length | 3-1/16 inches |
| Overall length | 4-3/8 inches |
| Performance level | Medium duty |
| Drilling application | Abrasive, non-ferrous materials |
| Package style | Standard |
| Package quantity | 1 |
| Country of origin | Made in USA |
How to Use
Use the 705CT-19/64 with a rigid setup and the correct speed and feed for the workpiece. Keep the drill aligned, clear chips frequently and avoid side loading or forcing the tool.
Carbide-tipped cutting tools can chip or shatter if misused or overloaded. Wear eye protection and follow the drill and machine manufacturer's operating instructions.
