01 — Essential Specifications
Choose with confidence
Essential specifications
The facts that matter most when choosing the right product in this family.
02 -- Materials, Applications & Machines
Working compatibility
Materials, applications & machines
Quickly confirm what the tool can cut, the work it is designed to perform, and the equipment it is intended to run on.
Compatible materials
Recommended workpiece materials
- Stainless steel
- Tough alloys
- Steel
Recommended applications
Typical jobs and operations
- Stainless Steel Steel Tough Alloys
- Threading
- Holemaking
Compatible machines
Equipment and operating methods
- Manual
- Tapping machine
03 -- Complete Technical Specifications
Technical data
Complete technical specifications
Open only the groups you need to confirm construction, dimensions, and operating requirements.
Construction & identification
Tool typeTap & Drill Sets
Tool subtypeTap & Drill Sets
Detailed styleStandard Set Configuration
Manufacturer seriesTD36-XL
Series familyTD36
Measurement systemWire/Letter/Number
Manufacturer part numberTD36-XL
Dimensions & fit
Size#6-40 UNF
Drill / wire / letter designation#6
Pack quantity1
Set piece count36
Threading
Thread size#6-40
Thread standard / formUNC
Threads per inch40.0 TPI
04 -- Why Choose this series
Series advantage
Why choose the TD36-XL series
TD36-XL
Complete 36-piece heavy-duty combination set with broad UNC and UNF coverage using Brute XL5 drills and XL22 spiral point taps
Features supporting this advantage
- Complete 36-piece heavy-duty combination set with broad UNC and UNF coverage using Brute XL5 drills and XL22 spiral point taps
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
What’s included
Components supplied with this product
- 18 Brute XL5 drills: 5/16, 25/64, 27/64, 29/64, #3, #7, #15, #16, #21, #25, #29, #33, #36, F, I, Q, U, O
- 18 Brute XL22 spiral point taps: 6-40, 8-36, 10-32, 6-32, 10-24, 12-24, 12-28, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20
- metal case
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
View the complete technical description

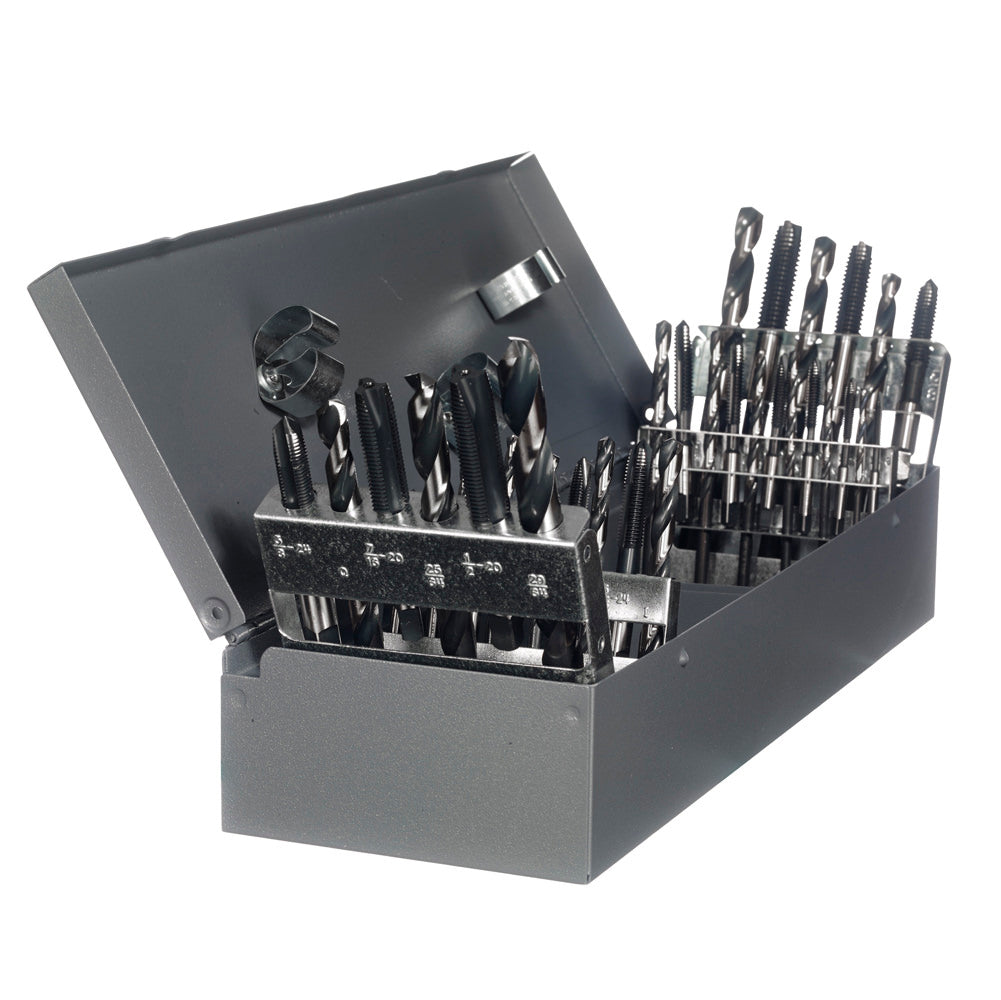

Champion TD36-XL 36-Piece Brute Tap & Drill Set – XL5/XL22 NC/NF
TD36-XL is a Champion 36 pieces tap and drill set combining Brute XL5 drills with Brute XL22 spiral point taps. This UNC and UNF set is designed for heavy duty drilling and tapping in the listed metal applications.
Key Benefits
- Complete 36-piece heavy-duty combination set with broad UNC and UNF coverage using Brute XL5 drills and XL22 spiral point taps
- High-speed steel cutting tools for dependable drilling and tapping performance.
- Metal case helps organize, store and protect the complete set.
- Matched drill and tap sizes simplify preparation for common thread sizes.
- Made in USA Champion set for machine shops, fabrication, maintenance and repair work.
Applications
- Stainless steel and tough alloys
- UNC and UNF through-hole tapping
- Fabrication, machining and maintenance work
Set Inclusions
18 Brute XL5 drills: 5/16, 25/64, 27/64, 29/64, #3, #7, #15, #16, #21, #25, #29, #33, #36, F, I, Q, U, O; 18 Brute XL22 spiral point taps: 6-40, 8-36, 10-32, 6-32, 10-24, 12-24, 12-28, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20; metal case
Technical Specifications
| Manufacturer part number | TD36-XL |
|---|---|
| Product type | Champion tap and drill set |
| Set size | 36 pieces |
| Tap type | UNC and UNF |
| Drill series | Brute XL5 |
| Tap series | Brute XL22 spiral point taps |
| Included drill sizes | 5/16, 25/64, 27/64, 29/64, #3, #7, #15, #16, #21, #25, #29, #33, #36, F, I, Q, U, O |
| Included tap sizes | 6-40, 8-36, 10-32, 6-32, 10-24, 12-24, 12-28, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20 |
| Case | Metal storage case |
| Tool material | High-speed steel (HSS) |
| Country of origin | Made in USA |
How to Use
Select the tap and matching drill size for the required thread, secure the workpiece and drill straight before tapping. Use suitable cutting fluid, clear chips regularly and follow the tap manufacturer's operating guidance. Wear eye protection and appropriate personal protective equipment.
Cutting tools may shatter if misused. Secure the workpiece, avoid excessive force and follow safe machine operating procedures. California Proposition 65 warning may apply.
