01 — Essential Specifications
Choose with confidence
Essential specifications
The facts that matter most when choosing the right product in this family.
02 -- Materials, Applications & Machines
Working compatibility
Materials, applications & machines
Quickly confirm what the tool can cut, the work it is designed to perform, and the equipment it is intended to run on.
Compatible materials
Recommended workpiece materials
- Stainless steel
- Tough alloys
- Steel
Recommended applications
Typical jobs and operations
- Stainless Steel Titanium Alloys Steel Tough Alloys Machinery Components
- Holemaking
03 -- Complete Technical Specifications
Technical data
Complete technical specifications
Open only the groups you need to confirm construction, dimensions, and operating requirements.
Construction & identification
Tool typeScrew Extractor Sets
Tool subtypeScrew Extractor Sets
Detailed styleStandard Set Configuration
Manufacturer seriesX1-XL5LH
Series familyX1
Measurement systemWire/Letter/Number
Cutting directionLeft-hand
Manufacturer part numberX1-XL5LH
Dimensions & fit
SizeXL5LH 5/64"to 19/64"(5 sizes)
Drill / wire / letter designationH
Increment1/1 in
Cutting diameterXL5LH 5/64"to 19/64"(5 sizes)
Pack quantity1
04 -- Why Choose this series
Series advantage
Why choose the X1-XL5LH series
X1-XL5LH
135° split-point Brute XL5LH drills help start accurately while left-hand rotation can loosen broken bolts
Features supporting this advantage
- 135° split-point Brute XL5LH drills help start accurately while left-hand rotation can loosen broken bolts
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
What’s included
Components supplied with this product
- Brute XL5LH sizes 5/64" to 19/64" (5 sizes)
- X1 spiral flute extractors #1 to #5
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
View the complete technical description

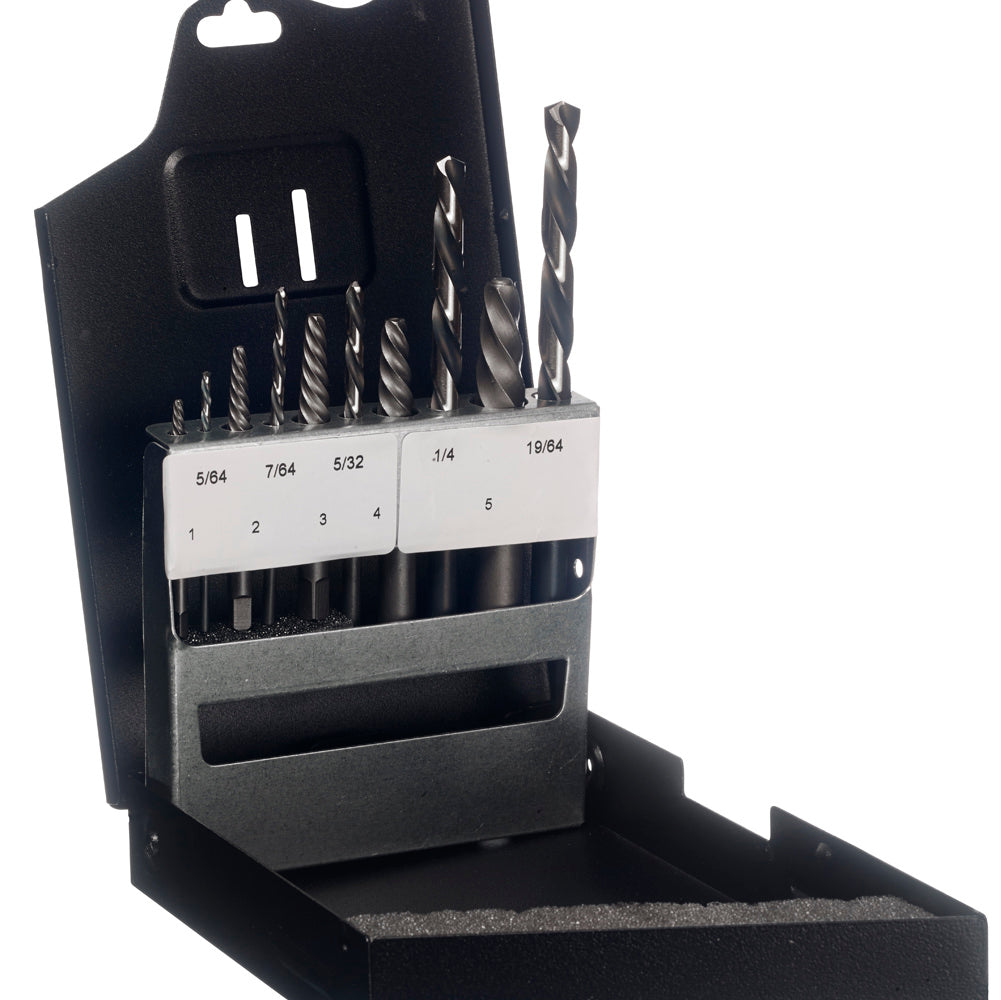

Champion X1-XL5LH Heavy-Duty Left-Hand Drill & Screw Extractor Set – 5/64"–19/64" + #1–#5
X1-XL5LH is a Champion heavy-duty left-hand drill and spiral screw extractor set. It combines five Brute XL5LH drills with five Champion X1 spiral flute extractors to help remove broken screws, studs, bolts and pipe fittings with right-hand threads.
Set Inclusions
Brute XL5LH drills 5/64", 7/64", 5/32", 1/4", 19/64"; Champion X1 spiral flute screw extractors #1 to #5.
Key Benefits
- Left-hand drilling can help loosen broken or frozen bolts while drilling in reverse.
- X1 spiral flute extractors use tapered flutes and counterclockwise rotation to force out right-hand threaded parts.
- Brute XL5LH, 135° split point, NoMo surface-treated high-speed steel supports the intended heavy-duty application.
- Made in USA for professional repair, maintenance and fabrication work.
Applications
- Stainless steel, titanium alloys and other tough materials
- Left-hand rotation multiple-spindle heads, gear-driven drilling heads, screw machines, lathes and machinery
- Broken, frozen, rusty, seized or sheared right-hand threaded fasteners
Technical Specifications
| Manufacturer part number | X1-XL5LH |
|---|---|
| Product type | Left-hand drill and spiral flute screw extractor set |
| Drill series | Champion XL5LH |
| Included drill sizes | 5/64" to 19/64" across five sizes |
| Included extractors | Champion X1 spiral flute, #1 to #5 |
| Drill construction | Brute XL5LH, 135° split point, NoMo surface-treated high-speed steel |
| Drilling direction | Left-hand rotation |
| Performance level | Heavy-duty |
| Application material | stainless steel, titanium alloys and other tough materials |
| Country of origin | Made in USA |
| Package quantity | 1 set |
How to Use
Secure the workpiece and select the recommended drill size for the broken fastener. Drill with the left-hand bit in reverse, then insert the correct X1 extractor into the pilot hole and turn counterclockwise with controlled hand-tool torque. Penetrating oil can help with rusty or corroded parts. Do not use an impact driver; wear eye protection and follow safe extraction practices.
Cutting tools and broken fasteners may chip or shatter if misused. Use the correct speed, feed, workholding and safety equipment for the material and machine.
