01 — Essential Specifications
Choose with confidence
Essential specifications
The facts that matter most when choosing the right product in this family.
02 -- Materials, Applications & Machines
Working compatibility
Materials, applications & machines
Quickly confirm what the tool can cut, the work it is designed to perform, and the equipment it is intended to run on.
Compatible materials
Recommended workpiece materials
- Stainless steel
- Tough alloys
- Steel
Recommended applications
Typical jobs and operations
- Steel Stainless Steel Tough Alloys Through-Hole Tapping CNC Tapping Machine Shop
- Threading
Compatible machines
Equipment and operating methods
- Manual
- Tapping machine
03 -- Complete Technical Specifications
Technical data
Complete technical specifications
Open only the groups you need to confirm construction, dimensions, and operating requirements.
Construction & identification
Tool typeTaps
Tool subtypeSpiral-Point Taps
Detailed styleHSS · Plug
Manufacturer seriesXL22M
Series familyXL22M
Tool materialHigh Speed Steel
Coating / finishStandard
Manufacturer part numberXL22M-14X2
Dimensions & fit
Size14 × 2
Increment1/2 in
Cutting diameter14x2
Flute / cutting length1-21/32
Overall length3-19/32
Pack quantity1
Cutting geometry
Flute geometrySpiral Point
Flute count3
Threading
Thread size14-2
Threads per inch2.0 TPI
Thread classD7
Tap chamfer stylePlug
04 -- Why Choose this series
Series advantage
Why choose the XL22M series
XL22M
3-flute surface-treated HSS spiral point plug tap that pushes chips ahead for heavy-duty through-hole tapping
Features supporting this advantage
- 3-flute surface-treated HSS spiral point plug tap that pushes chips ahead for heavy-duty through-hole tapping
- High Speed Steel
- Standard
- Spiral Point
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
What’s included
Components supplied with this product
- 1 XL22M metric spiral point plug tap(s)
- 3 flutes
- through-hole application
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
View the complete technical description

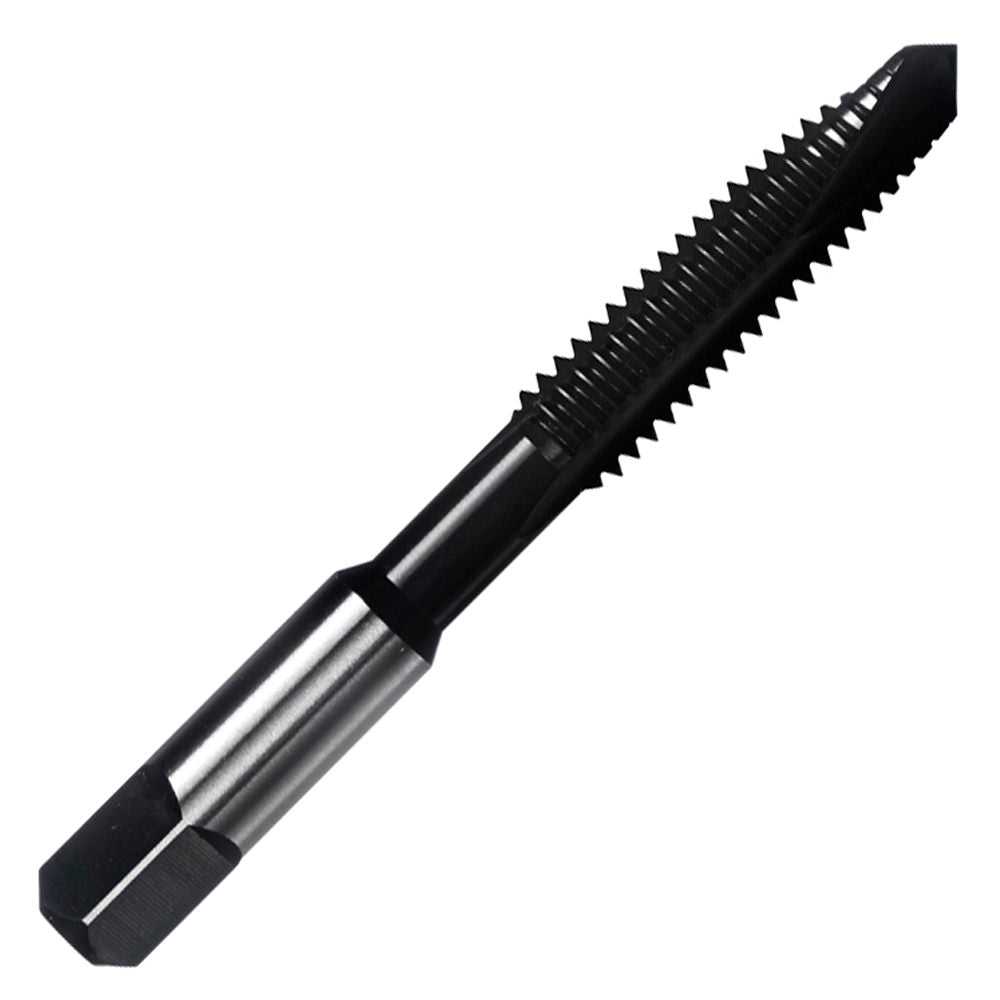

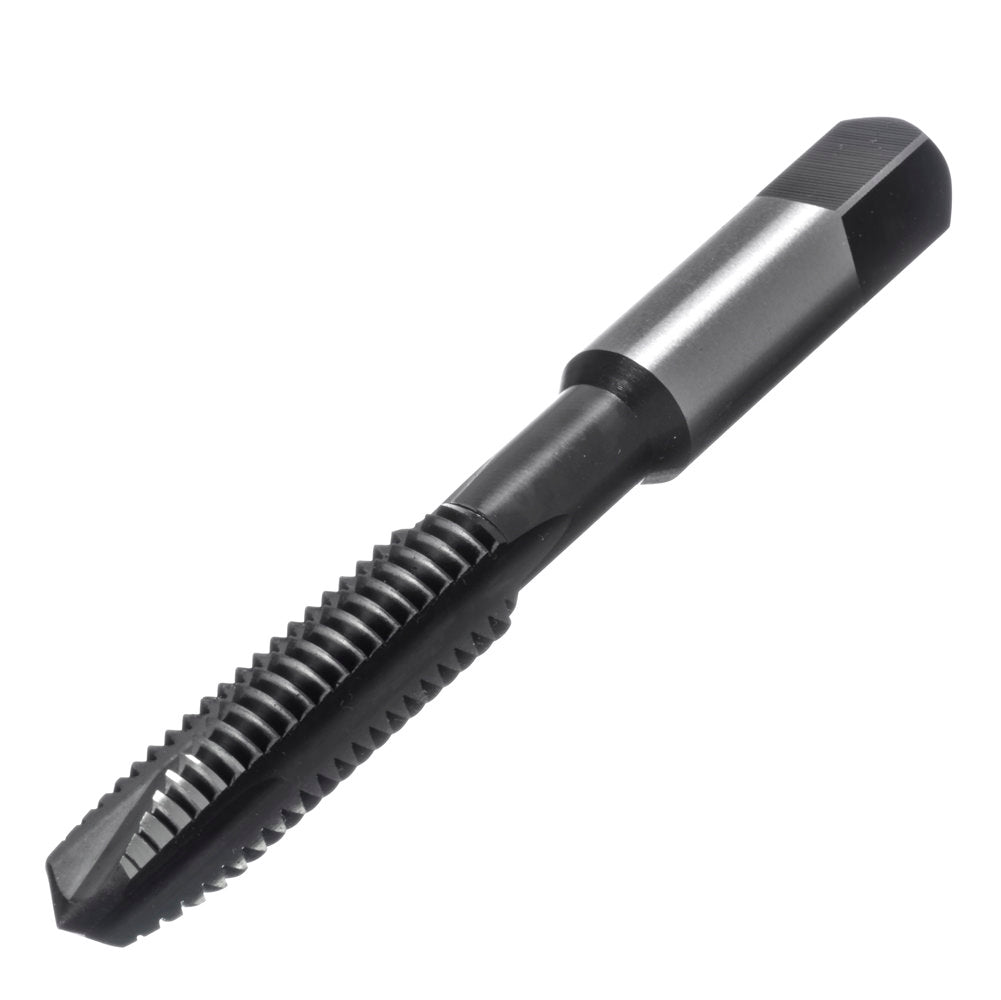

Champion XL22M 14 x 2 3-Flute HSS Metric Spiral Point Plug Tap
XL22M-14X2 is a Champion XL22M 14 x 2 3-flute metric spiral point plug tap, commonly called a gun tap, for heavy-duty through-hole machine tapping. It uses surface-treated high-speed steel (HSS) and is designed to shear and eject chips ahead of the tap. It is sold individually.
Key Benefits
- 3-flute surface-treated HSS spiral point plug tap that pushes chips ahead for heavy-duty through-hole tapping
- Spiral point cutting action reduces chip buildup in through holes.
- Square shank fits the Champion XLT tapper, CNC machines and compatible handheld tap wrenches.
- The plug style is suited to through-hole work and applications with room for chips to exit.
- Made in USA Champion tooling for metric machine-shop and fabrication work.
Applications
- Through-hole tapping in steel
- Stainless steel and tough alloys
- CNC and production tapping
- Fabrication, maintenance and machine assembly
Technical Specifications
| Manufacturer part number | XL22M-14X2 |
|---|---|
| Product type | Champion HSS Metric Spiral Point Plug Taps |
| Thread size | 14 x 2 |
| Tap style | Spiral point / plug / gun tap |
| Flutes | 3 |
| Tool material | surface-treated high-speed steel (HSS) |
| Primary application | Through-hole tapping |
| Package quantity | 1 tap(s) |
| Country of origin | Made in USA |
How to Use
Use the correct metric pre-drill for the 14 x 2 thread, secure the workpiece and keep the tap aligned with the hole. Apply suitable cutting fluid, use the correct tapping speed and feed, and allow the spiral point to eject chips through the hole. Wear eye protection and appropriate personal protective equipment.
Spiral point taps are intended primarily for through holes. Cutting tools may shatter if misused. Follow the machine and tap manufacturer's operating instructions. California Proposition 65 warning may apply.
