Materials & Applications
Compatibility
Materials & Applications
Recommended use cases for this product across common industrial materials and jobsite applications.
Steel structural sections (I-beams, H-beams), plates, angles
Truck frames, trailer frames, wheel arches, undercarriage areas
Annular cutter drilling up to 1-3/8″ diameter
Low-clearance zones, tight fit areas, confined job-site spaces
Maintenance, MRO, fabrication, welding prep work
Steel, stainless steel, cast iron, heavy alloys in structural or mobile equipment contexts
Product details
Technical Description
Essential product information, specifications, and recommended use before ordering.

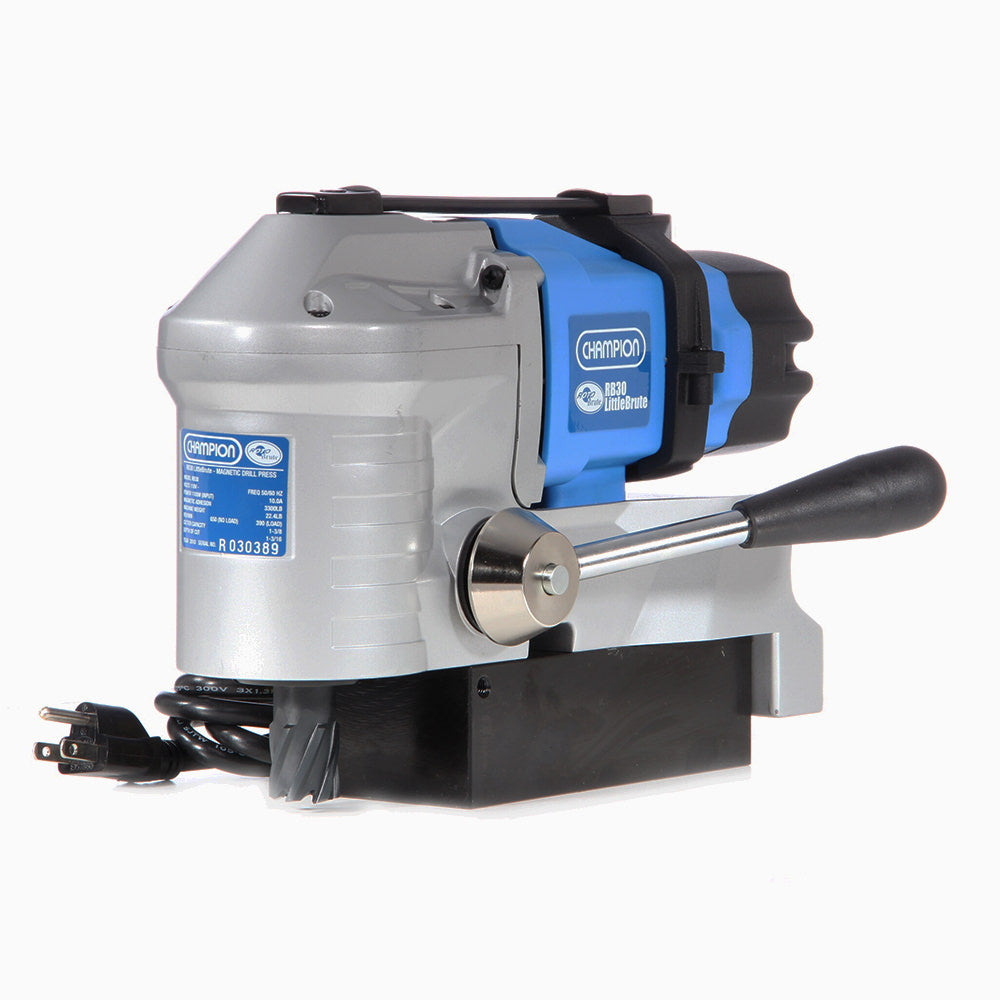

Champion RB30 LittleBrute Magnetic Drill Press — Low-Profile Power for Tight Spaces
The RB30 LittleBrute is a compact, low-profile magnetic drill press engineered for drilling where full-height mag drills won’t fit. With a 1-3/8″ diameter × 1-3/16″ depth capacity, 1100 W motor, and 3300 lb magnetic holding force, it delivers clean, accurate holes on structural steel, truck frames, and confined job-site locations.
Why It Wins
- Low-clearance design (≈ 7-3/4″ tall) to work inside beams, wheel wells, and tight cavities
- Serious capacity for its size: annular cutters up to 1-3/8″ dia × 1-3/16″ depth
- Strong base: 3300 lb magnet for stable, chatter-free cuts on vertical or overhead work
- Controlled performance: 1100 W motor at ~650 RPM for demanding materials
- Portable productivity: ~23–25 lb for faster setup and repositioning on site
- Operator focused: integrated work light, quick-change accessories, safety strap
Technical Specs
| Annular Cutter Capacity | 1-3/8″ (35 mm) dia × 1-3/16″ (30 mm) depth |
|---|---|
| Motor | 1100 W |
| No-Load Speed | ~650 RPM |
| Magnetic Holding Force | 3300 lb |

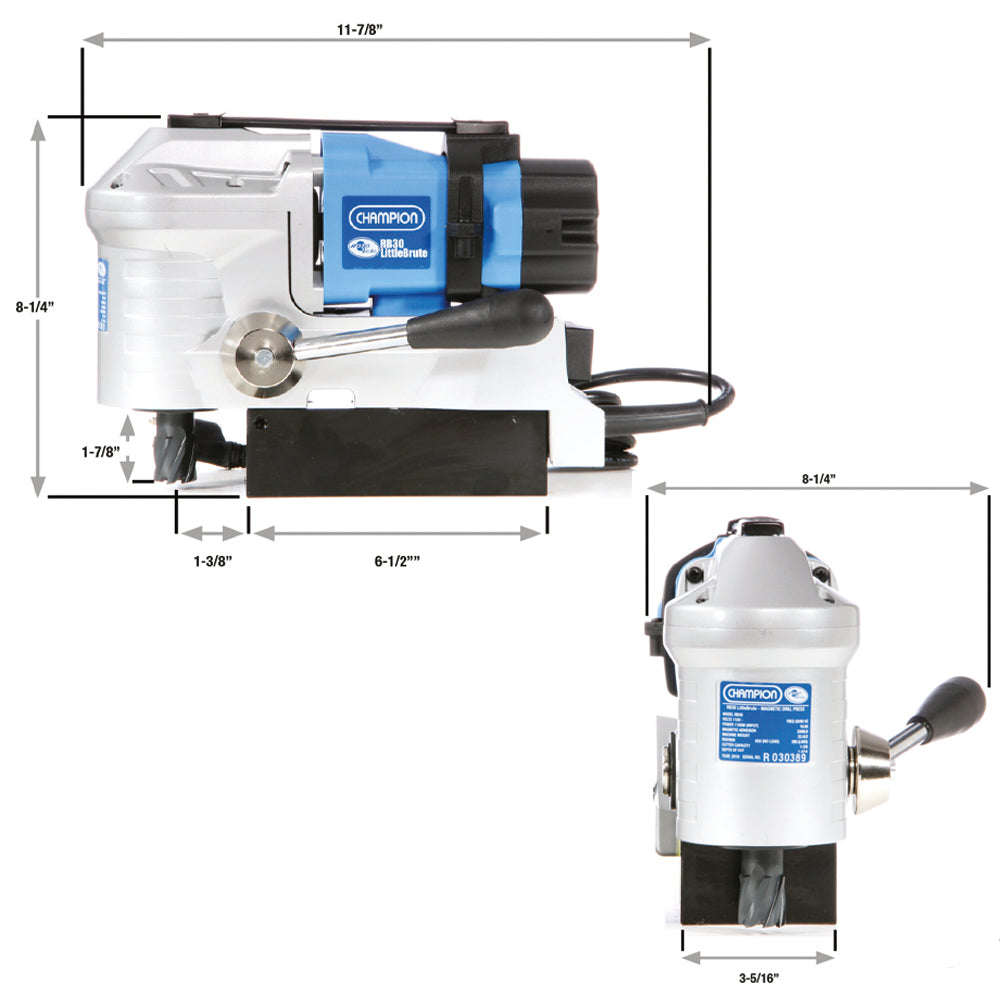

| Overall Height | ≈ 7.75″ (197 mm) |
| Weight | ≈ 23–25 lb (10.4–11.3 kg) |
| Use Cases | Structural steel, truck/trailer frames, bridgework, shop/MRO in tight spaces |
Always use appropriate PPE. Secure the machine with the safety strap when required.
Frequently bought together
Recommended Add-Ons
Quickly add the accessories most often purchased with this item so the job gets done right the first time.
ANNULAR CUTTERS FOR MAGNETIC DRILL PRESSES
Do You Need Annular Cutters for your Mag Drill?
Select your diameter, then add the right cutter directly to your cart to keep the job moving with zero guesswork.
PARTS & ACCESSORIES

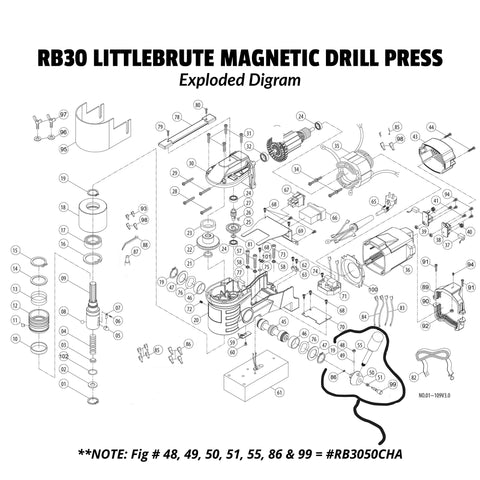

Available Parts for CHA-RB30 Magnetic Drill Presses
Everything you need to keep your mag drill reliable, accurate, and running at peak productivity.
