Materials & Applications
Compatibility
Materials & Applications
Recommended use cases for this product across common industrial materials and jobsite applications.
Structural/mild steel, alloy steel, stainless, cast iron
I-beams, H-beams, plate, angle, bridge and building steel
Annular cutting up to 2-1/8″ diameter × 2″ depth
Twist drilling up to 1″ with chuck adaptor
Reaming and countersinking operations
Field fabrication, shop fabrication, maintenance/MRO, construction installs
Product details
Technical Description
Essential product information, specifications, and recommended use before ordering.

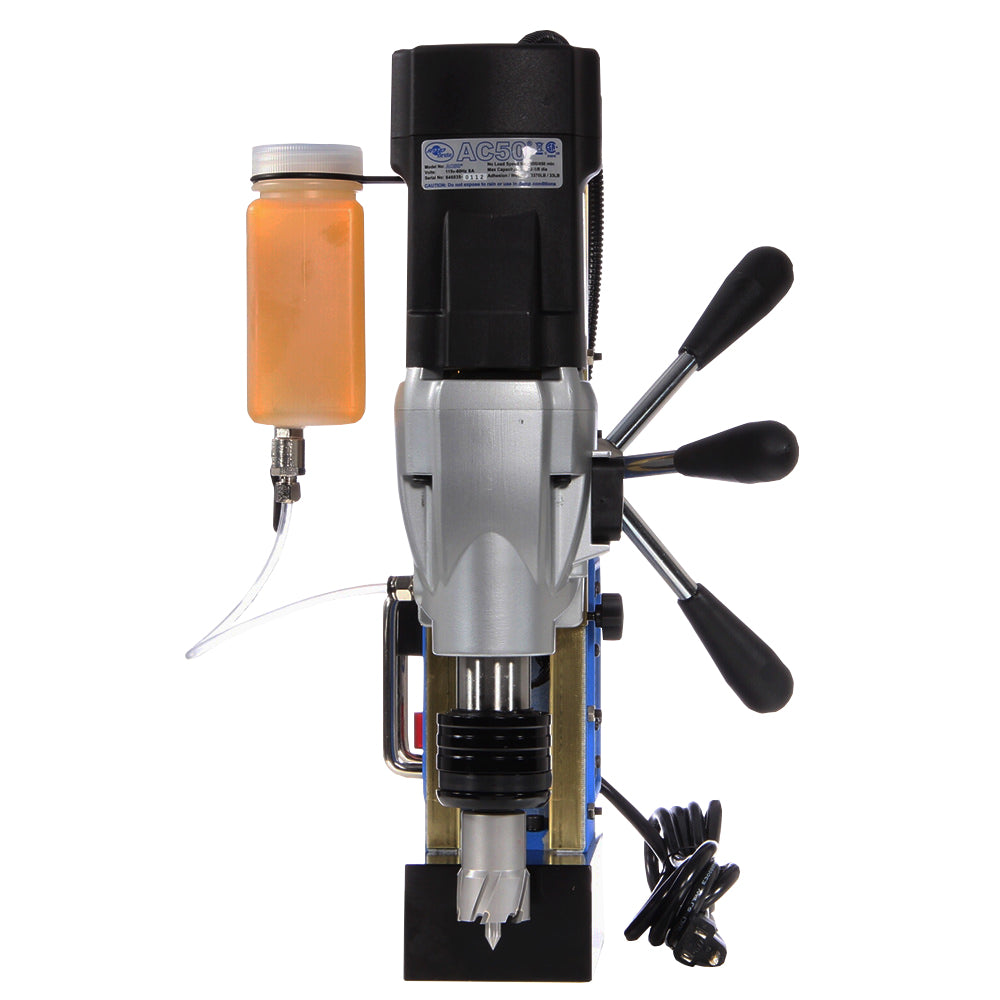

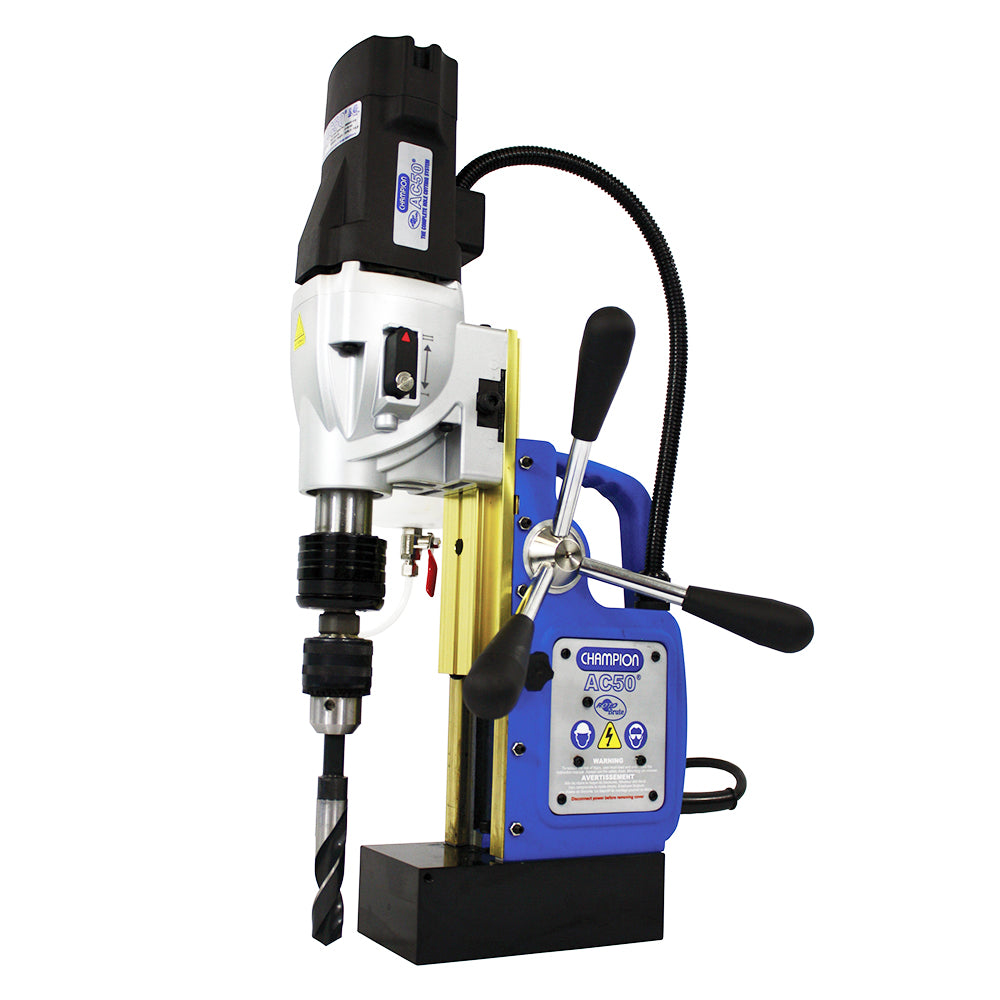

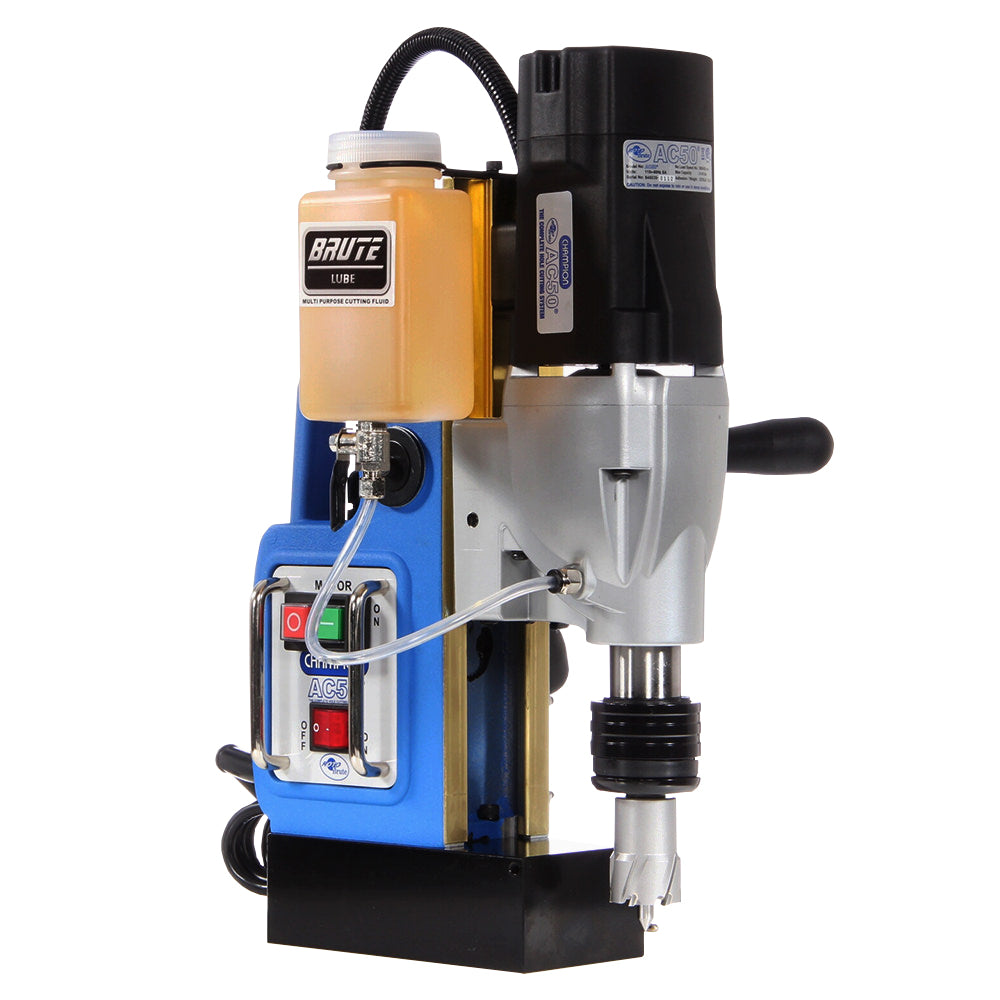

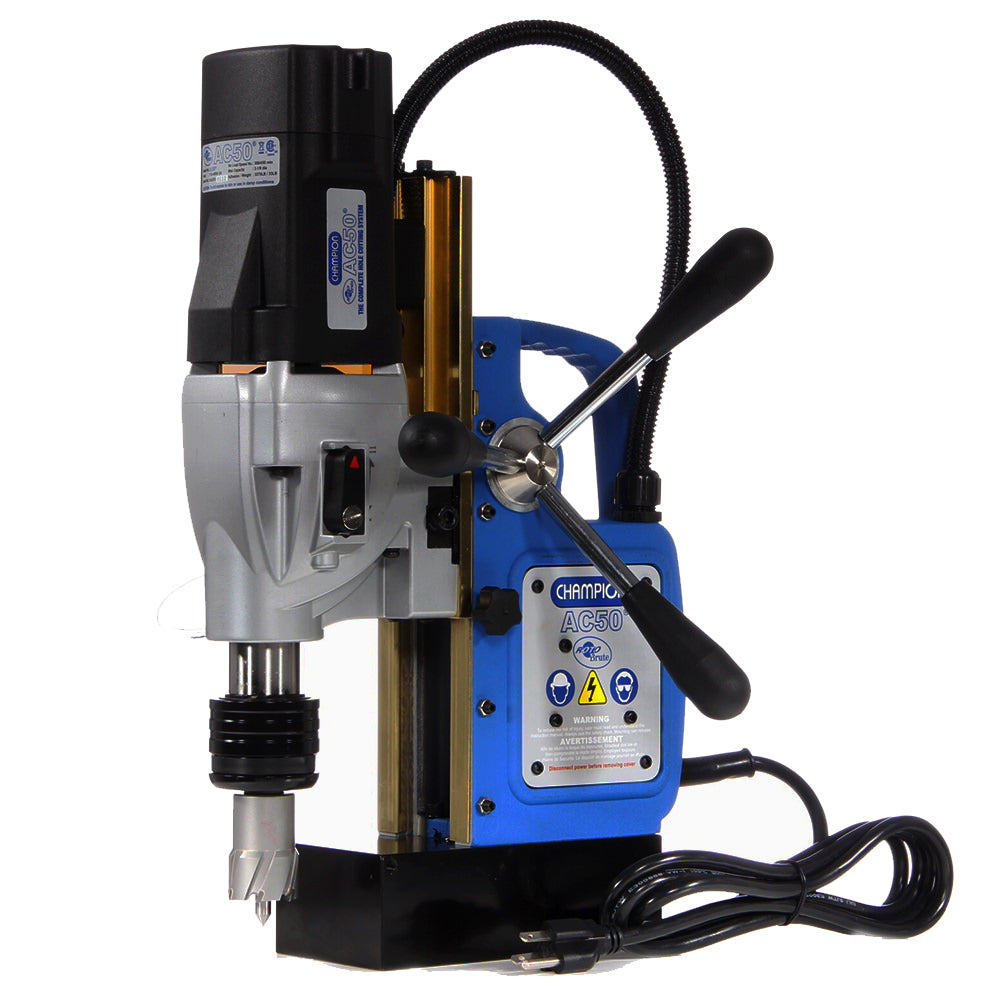

Champion AC50 MightiBrute Magnetic Drill Press — 2-1/8″ Diameter × 2″ Depth Heavy-Duty Mag Drill
The AC50 MightiBrute is built for serious drilling performance on structural steel and demanding metal-fabrication tasks. With a massive 2-1/8″ diameter × 2″ depth capacity, dual-speed motor (300/450 RPM), 1100 W power, and a 3370 lb magnetic base, this machine delivers precision, strength and portability for professionals who refuse compromise.
Key Advantages
- High-capacity cutter: 2-1/8″ diameter × 2″ depth of cut — perfect for large clearance holes in heavy steel.
- Dual-speed motor with 300/450 RPM options — gives control across materials and applications.
- Solid holding force: 3370 lb magnetic base keeps the unit stable even on vertical or overhead surfaces.
- Relatively lightweight for its class: ~33 lb — easier to handle on site, transport between jobs.
- Quick-change arbor system and compatibility with standard ¾″ Weldon shank annular cutters plus twist drills (up to 1″) for maximum versatility.
What’s in the Box

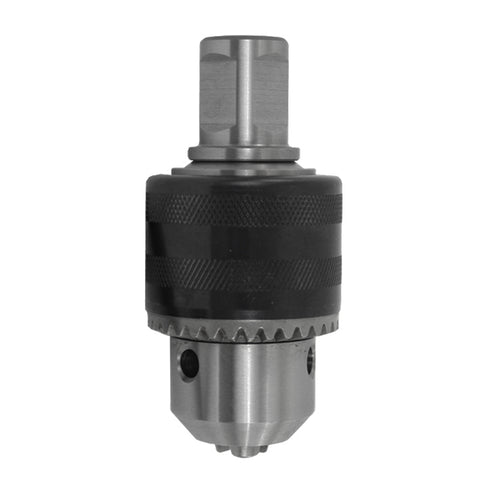

- Carrying case, safety guard, removable handle, safety chain, external coolant bottle, quick release arbor, drill/chuck adaptor.
Technical Specifications
| Cutter Capacity (Dia × Depth) | 2-1/8″ × 2″ |
|---|---|
| Motor Power | 1100 W |
| Motor Speed | 300 / 450 RPM (2-speed) |
| Magnetic Holding Force | 3370 lb |
| Weight | ≈ 33 lb |
| Twist Drill Capacity | Up to 1″ diameter |
Always wear appropriate personal protective equipment (PPE). Secure the machine with the safety strap/chain when required.
Most Interesting Product Feature
Product highlight
Most Interesting Product Feature
- Includes: Carrying case, safety guard, removable handle, safety chain, external coolant bottle, quick release arbor, drill/chuck adaptor.
