01 — Essential Specifications
Choose with confidence
Essential specifications
The facts that matter most when choosing the right product in this family.
02 -- Materials, Applications & Machines
Working compatibility
Materials, applications & machines
Quickly confirm what the tool can cut, the work it is designed to perform, and the equipment it is intended to run on.
Compatible materials
Recommended workpiece materials
- Aluminum
- Copper
- Zinc
- Non-Ferrous Metals
Recommended applications
Typical jobs and operations
- Grinding
- Weld Removal
Compatible machines
Equipment and operating methods
- Angle Grinder
03 -- Complete Technical Specifications
Technical data
Complete technical specifications
Open only the groups you need to confirm construction, dimensions, and operating requirements.
Abrasive specifications
Wheel thickness1/4" (0.250")
Manufacturer specificationA30N
Disc / wheel diameter5"
Diameter — inches5.0″
Abrasive grainAluminum Oxide
Disc profileType 27
Supplier box quantity10
Construction & identification
Tool typeGrinding Wheels
Tool subtypeAluminum Grinding Wheels
Detailed styleType 27
Manufacturer seriesAl Edge
Manufacturer part number36110
Dimensions & fit
Size5" x 1/4" (0.250") x 5/8"-11 threaded hub
Arbor / mount size5/8"-11 threaded hub
Pack quantity10
Machine & operation
Maximum speed12200 RPM
04 -- Why Choose this series
Series advantage
Why choose the Al Edge series
Al Edge
CGW Al Edge Aluminum Type 27 wheels use premium aluminum oxide grain with a soft N-grade bond for weld removal on aluminum, copper, zinc and other non-ferrous materials. The grain is engineered for non-loading grinding action. Select the diameter, mount and maximum speed appropriate to your right-angle grinder. Nominal wheel thickness is 1/4 inch.
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
Fit details
Arbor / mount5/8"-11 threaded hub
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
Use for grinding only, not cut-off operations. Follow CGW instructions for the permitted grinding angle, pressure and operation. Match the diameter, Type 27 wheel construction and mount to compatible equipment and the appropriate manufacturer-approved guard. CGW lists 12,200 RPM as this reference's maximum wheel speed. Always follow the actual wheel markings and never exceed the lowest applicable wheel, mount or tool rating. The series image is representative; confirm the selected reference's specifications and actual markings. Follow CGW instructions. Sold in complete-box multiples of 10 wheels; the displayed price is per wheel.
View the complete technical description
Al Edge Aluminum Grinding Wheel

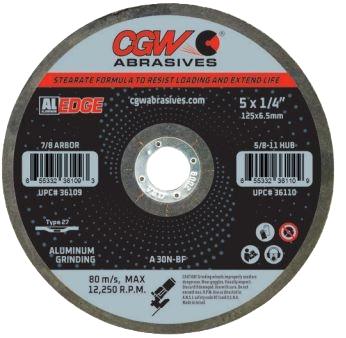

CGW 36110 is a 5" x 1/4" (0.250") Type 27 wheel with 5/8"-11 threaded hub mounting.
CGW Al Edge Aluminum Type 27 wheels use premium aluminum oxide grain with a soft N-grade bond for weld removal on aluminum, copper, zinc and other non-ferrous materials. The grain is engineered for non-loading grinding action. Select the diameter, mount and maximum speed appropriate to your right-angle grinder. Nominal wheel thickness is 1/4 inch.
| Manufacturer part number | 36110 |
|---|---|
| Diameter | 5" |
| Wheel thickness | 1/4" (0.250") |
| Wheel type | Type 27 |
| Arbor / mount | 5/8"-11 threaded hub |
| Abrasive grain | Aluminum Oxide |
| Manufacturer specification | A30N |
| Maximum wheel speed | 12,200 RPM |
| Workpiece materials | Aluminum, copper, zinc and other non-ferrous metals |
| Operations | Grinding |
| Box quantity | 10 |
Sold in complete-box multiples of 10 wheels. The displayed price is per wheel. Order 10, 20, 30 or another full-box multiple.
Use for grinding only, not cut-off operations. Follow CGW instructions for the permitted grinding angle, pressure and operation. Match the diameter, Type 27 wheel construction and mount to compatible equipment and the appropriate manufacturer-approved guard. CGW lists 12,200 RPM as this reference's maximum wheel speed. Always follow the actual wheel markings and never exceed the lowest applicable wheel, mount or tool rating. The series image is representative; confirm the selected reference's specifications and actual markings. Follow CGW instructions. Sold in complete-box multiples of 10 wheels; the displayed price is per wheel.
