01 — Essential Specifications
Choose with confidence
Essential specifications
The facts that matter most when choosing the right product in this family.
02 -- Materials, Applications & Machines
Working compatibility
Materials, applications & machines
Quickly confirm what the tool can cut, the work it is designed to perform, and the equipment it is intended to run on.
Compatible materials
Recommended workpiece materials
- Stainless steel
- Cast iron
- Aluminum
- Steel
Recommended applications
Typical jobs and operations
- Steel Stainless Steel Cast Iron Aluminum Pipe Fittings
03 -- Complete Technical Specifications
Technical data
Complete technical specifications
Open only the groups you need to confirm construction, dimensions, and operating requirements.
Construction & identification
Tool typeScrew Extractor Sets
Tool subtypeScrew Extractor Sets
Detailed style5-Piece Set
Manufacturer seriesX1-1-5
Series familyX1
Measurement systemWire/Letter/Number
Manufacturer part numberX1-1-5
Dimensions & fit
Size5-Piece Set
Drill / wire / letter designationE
Increment1/1 in
Pack quantity1
Set piece count5
Cutting geometry
Flute geometrySpiral Flute
04 -- Why Choose this series
Series advantage
Why choose the X1-1-5 series
X1-1-5
Left-hand rotation and tapered spiral flutes help extract right-hand threaded broken fasteners
Features supporting this advantage
- Left-hand rotation and tapered spiral flutes help extract right-hand threaded broken fasteners
- Spiral Flute
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
What’s included
Components supplied with this product
- 5-piece set
- spiral flute screw extractors #1 to #5
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
View the complete technical description

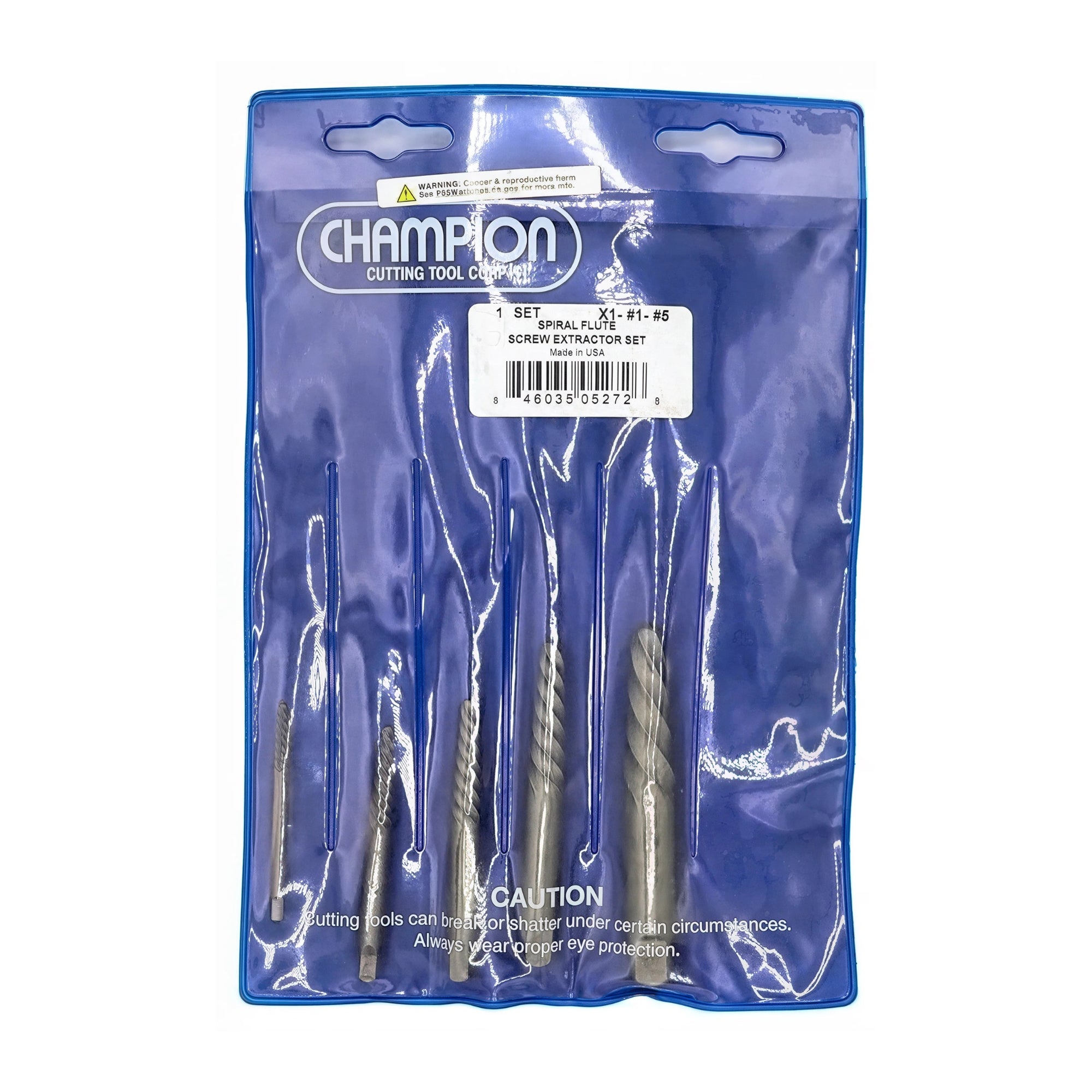

Champion X1-1-5 Spiral Flute Screw Extractor Set – 5-Piece #1 to #5
X1-1-5 is a Champion spiral flute screw extractor set containing 5-piece of extractors in sizes #1 to #5. It is designed for the removal of broken screws, studs, bolts and pipe fittings with right-hand threads.
Set Inclusions
5-piece set; spiral flute screw extractors #1 to #5.
Key Benefits
- Spiral Flute profile left-hand rotation and tapered spiral flutes help extract right-hand threaded broken fasteners.
- Made in USA for dependable workshop and field use.
- Counterclockwise extraction helps remove right-hand threaded broken fasteners after the correct pilot hole is drilled.
- Compact size range covers common repair and maintenance extraction jobs.
Applications
- Broken screws, studs, bolts and pipe fittings
- Automotive repair, industrial maintenance, construction, fabrication, hvac and plumbing
- Rusty, seized, sheared or overtightened fasteners
Technical Specifications
| Manufacturer part number | X1-1-5 |
|---|---|
| Product type | Champion spiral flute screw extractor set |
| Set size | 5-piece |
| Included sizes | #1 to #5 |
| Flute style | Spiral Flute |
| Extraction direction | Counterclockwise / left-hand rotation |
| Construction | Tapered spiral flutes tighten into the drilled hole as counterclockwise torque is applied |
| Country of origin | Made in USA |
| Package quantity | 1 set |
How to Use
Drill the correct pilot hole, insert the extractor and turn counterclockwise with controlled hand-tool torque. The left-hand tapered spiral flutes are designed to bite as the extractor is turned counterclockwise. Penetrating oil can help with rusty or corroded parts. Do not use an impact driver; wear eye protection, secure the workpiece and follow safe extraction practices.
Cutting tools and broken fasteners may chip or shatter if misused. Always use the recommended pilot-hole size and appropriate safety equipment.
