01 — Essential Specifications
Choose with confidence
Essential specifications
The facts that matter most when choosing the right product in this family.
02 -- Materials, Applications & Machines
Working compatibility
Materials, applications & machines
Quickly confirm what the tool can cut, the work it is designed to perform, and the equipment it is intended to run on.
Compatible materials
Recommended workpiece materials
- Stainless steel
- Cast iron
- Steel
Recommended applications
Typical jobs and operations
- Cast Iron Stainless Steel Titanium Alloys Carbon Steel Alloys High-Temperature Alloys Ferrous Metals Slotting Sidemilling Plunge Cutting Finishing
- Material removal
Compatible machines
Equipment and operating methods
- Milling machine
- CNC mill
03 -- Complete Technical Specifications
Technical data
Complete technical specifications
Open only the groups you need to confirm construction, dimensions, and operating requirements.
Construction & identification
Tool typeEnd Mills
Tool subtypeCorner-Chamfer End Mills
Detailed style4-Flute
Manufacturer seriesXLVC
Series familyXLVC
Measurement systemImperial
Manufacturer part numberXLVC-1
Dimensions & fit
Size1"
Cutting diameter1
Flute / cutting length1-1/2
Overall length4
Shank diameter1
Pack quantity1
Cutting geometry
Flute count4
04 -- Why Choose this series
Series advantage
Why choose the XLVC series
XLVC
45-degree corner-chamfer geometry with a heavy-duty four-flute core for high-volume material removal
Features supporting this advantage
- 45-degree corner-chamfer geometry with a heavy-duty four-flute core for high-volume material removal
05 -- Compatibility & What's Included
Compatibility & contents
Confirm the fit before ordering
The systems, models, and components below come directly from the product’s normalized fit data.
What’s included
Components supplied with this product
- 1 Champion XLVC-1 end mill
- 1 in
- 4-Flute AlCrN-Coated Corner Chamfer End Mill
06 -- Use Notes & Technical Description
Before you use it
Use notes & technical description
Important fit, operating, and care guidance to review before putting the tool to work.
View the complete technical description

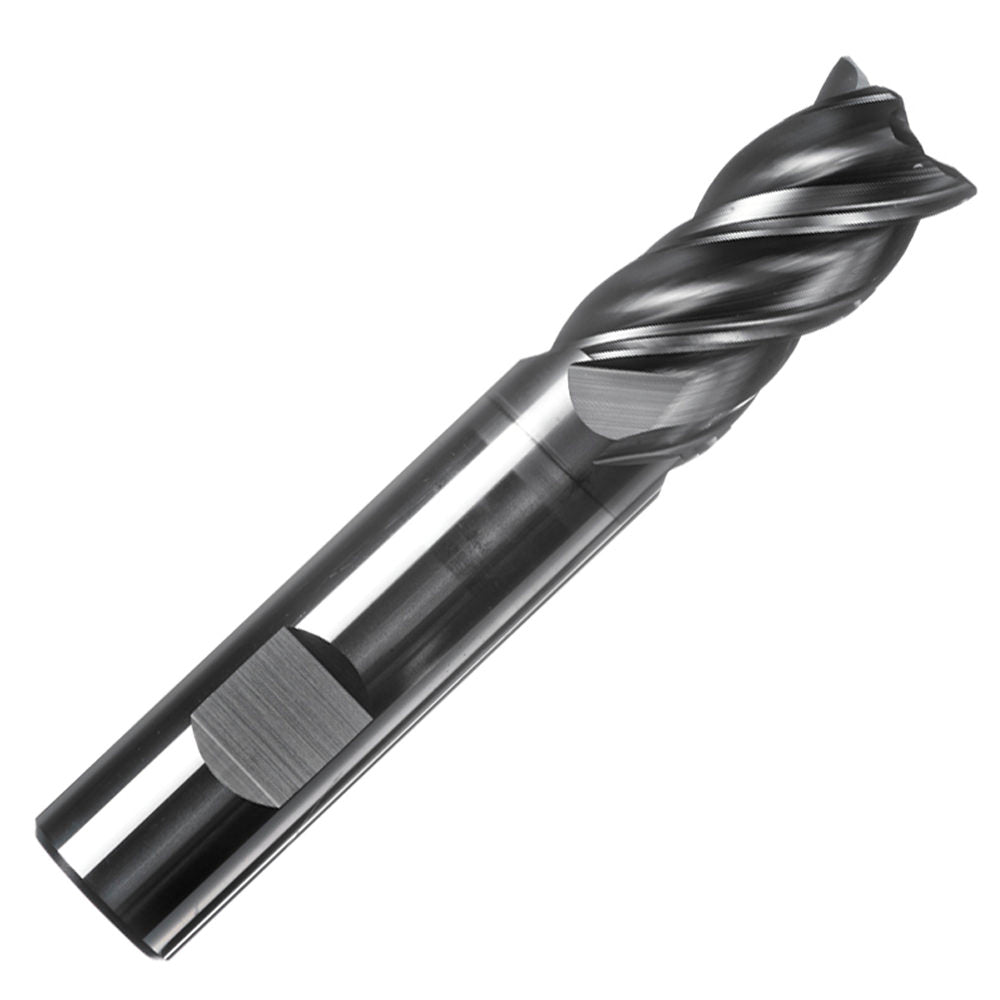

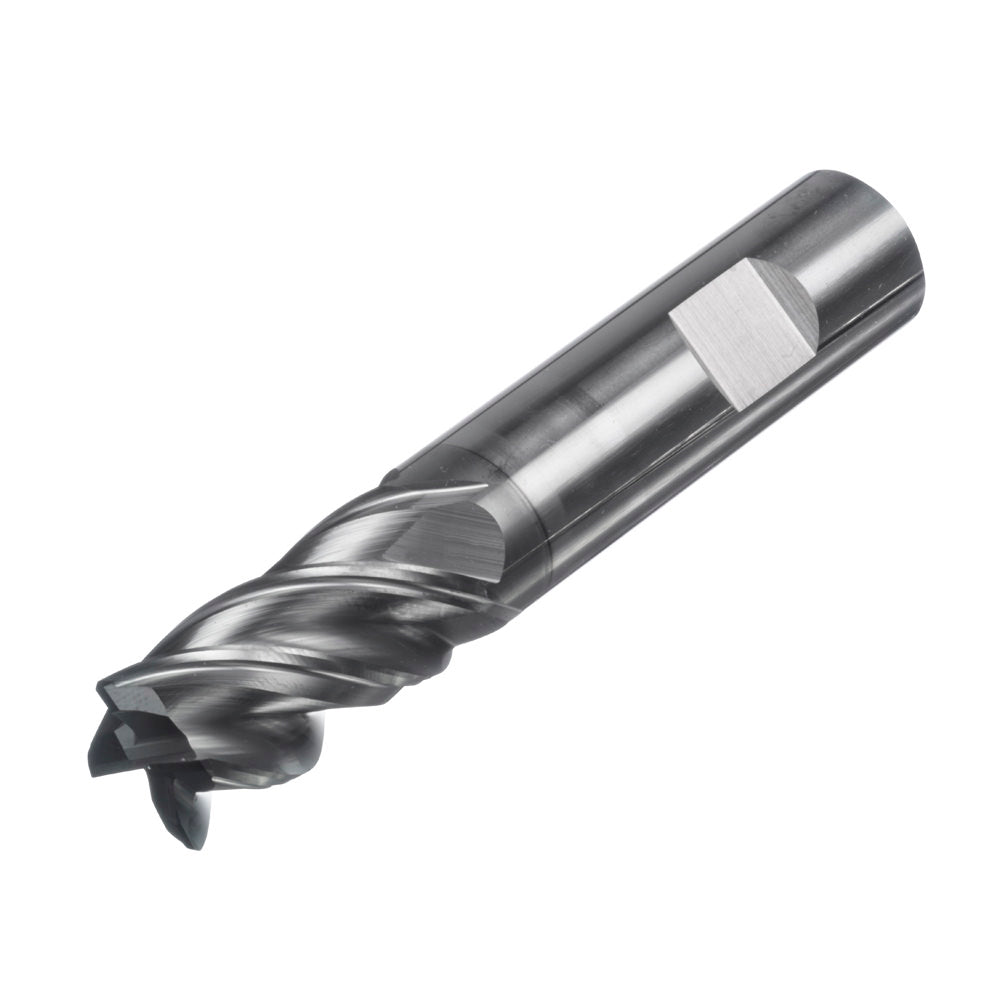

Champion XLVC-1 4-Flute AlCrN-Coated Corner Chamfer End Mill
XLVC-1 is a Champion 4-flute alcrn-coated corner chamfer end mill in 1 in. This standalone product is listed by exact MPN and size so you can select the correct end mill for your milling setup.
Key Benefits
- AlCrN-based Alcrona Pro coating helps extend tool life and resist heat and wear.
- 45-degree corner-chamfer end geometry produces a controlled chamfer while milling.
- Four flutes and a heavy-duty core support high material-removal rates with reduced chatter.
- Multi-purpose geometry for slotting, sidemilling, plunge cutting, semi-finishing and finishing.
- Designed for cast iron, stainless steel, titanium alloys, carbon alloys and high-temperature alloys.
Applications
- Slotting
- Sidemilling
- Plunge cutting
- Semi-finishing
- Finishing
- Corner chamfering
Technical Specifications
| Manufacturer part number | XLVC-1 |
|---|---|
| Product type | Champion AlCrN-Coated High-Performance Corner Chamfer End Mills |
| Cutting size | 1 in |
| Flute and end style | 4-Flute AlCrN-Coated Corner Chamfer End Mill |
| Helix | Right-hand helix |
| Primary materials and uses | Slotting; Sidemilling; Plunge cutting; Semi-finishing; Finishing; Corner chamfering |
| Package quantity | 1 end mill |
How to Use
Install the correct diameter in a rigid milling-machine or CNC holder. Use the manufacturer-recommended speed, feed, depth of cut and coolant for the workpiece. Keep the chamfer edge engaged as intended and clear chips from the cut.
This coated end mill is for machine-tool use. Cutting tools can shatter if overloaded or improperly held; use eye protection, guards, coolant practices and feeds and speeds appropriate for the material. California Proposition 65 warning may apply.
